• Model NO.：65 mm glass partition wall
• Product Name：Glass Partition Walls
• Application：Office,Conference Room,Hotel etc.
• Surface Material：Glass Clips with Aluminum
• Glass Type：Tempered Glass Partition
• Usage：Room Divider
• Width：500,1200 mm
• Height：Less Than 3 M
• Glass Thickness：9mm
• Warranty：3-5 Years
• Transport：Depends on Client
• Transport Package：Carton
• Specification：300X110X4 cm
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：94031000
• Production Capacity：50000 Square Meters Per Month

Specifications

1)Glass partition wall interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.
2)To ensure additional friction connection, shall be integrated with a magnetic strip.
3)Sliding partition wall easy element adjustment after installation.
4)Track system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.
5)Sliding glass partition wall shall be of 10 mm or 12mm tempered glass to the required level.

Series

BG65 Glazing Glass Partition

BG85 Aluminum Frame Glass Partition

BG85 Soundproof Glass Partition

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

36mm

85mm

85mm

Panel height

Up to 3000mm

Up to 6000mm

Up to 6000mm

Max height

3000mm

6000mm

6000mm

Panel width

800-1100mm

800-1100mm

800-1100mm

Frame construction

Top and bottom aluminum

Aluminum frame

Aluminum frame

Glass thickness

10mm or 12mm single glass

10mm or 12mm single glass

double 10mm glass

Fire safety

Optional Class O

Optional Class O

Optional Class O

Vertical profiles

n/a

n/a

Aluminum anodized with sealing profiles

Retractable seals

n/a

n/a

Aluminum black with double rubber seals

Operation of seals

n/a

n/a

Pass doors

Fixed full height door

Fixed full height door

Fixed full height door

Locking

Optional lock to panel

Optional lock to panel

Optional lock to panel

Sound insulation

n/a

n/a

n/a

Weight

Approx 30 kg/sq M

Approx 32 kg/sq M

Approx 50 kg/sq M

Movable glass partition usually used in office, restaurant, hotel lobby, warehouses, and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider, make our space flexible, maximize the use of our room.

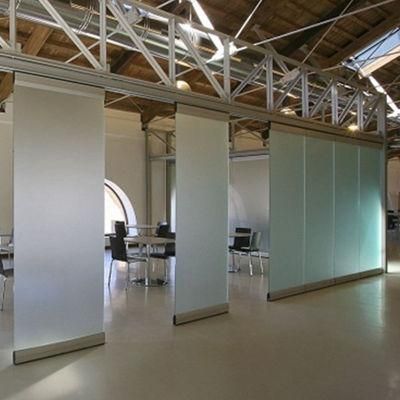

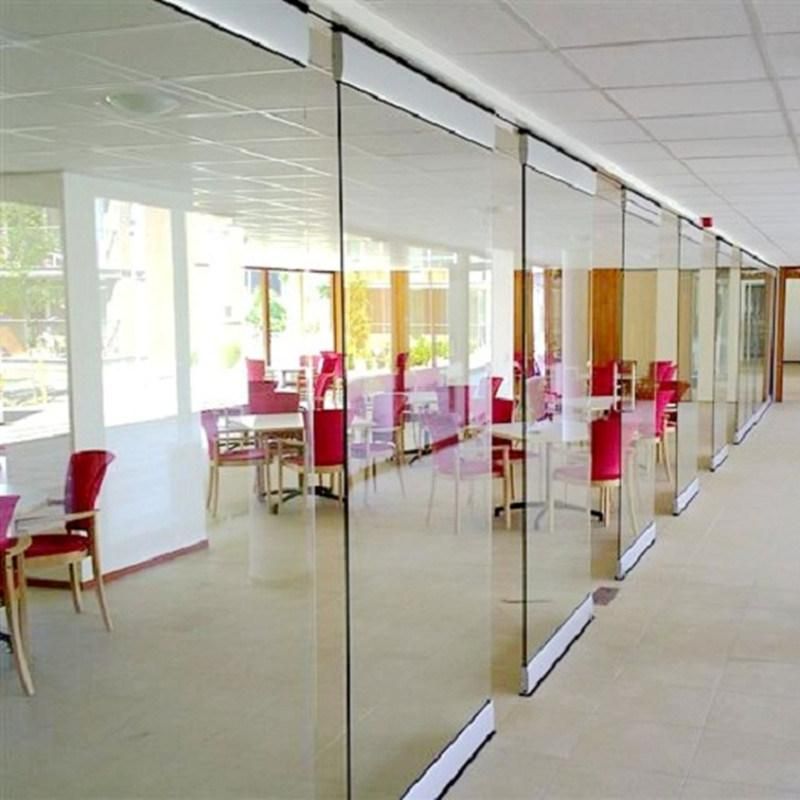

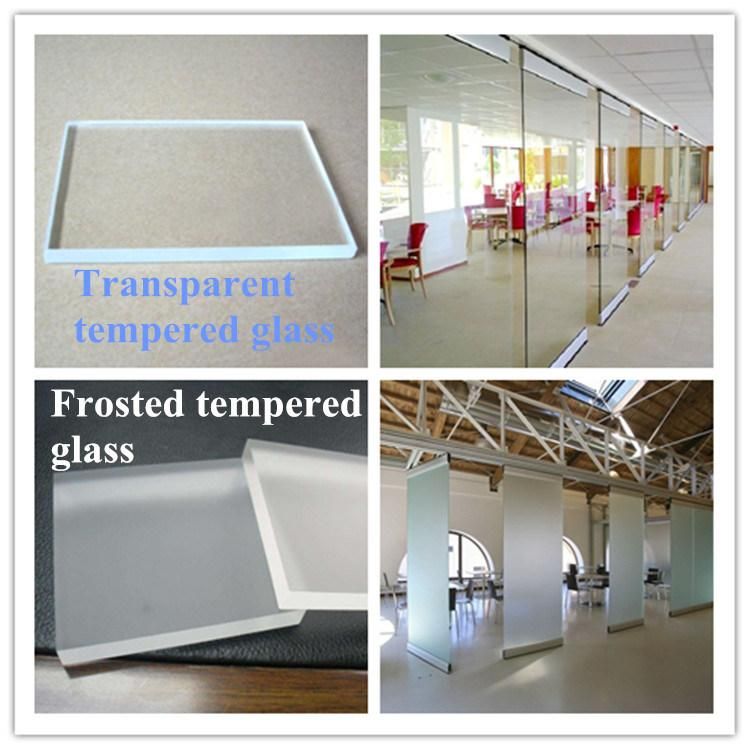

For the glass partition wall, there are two types: aluminum frame partition and frameless aluminum partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition, as the following shows:

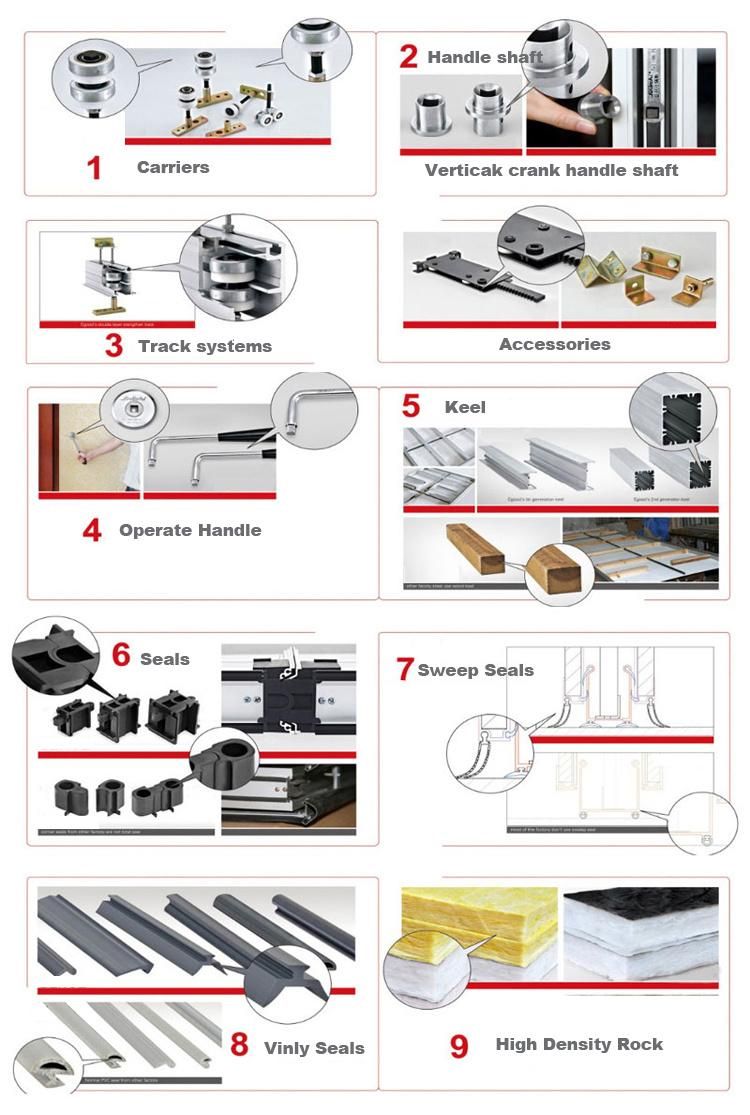

Accessories

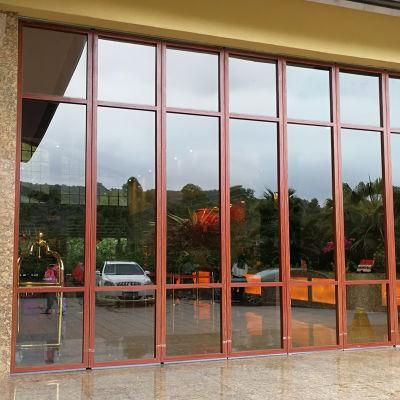

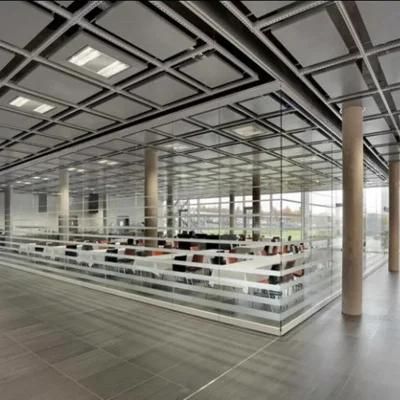

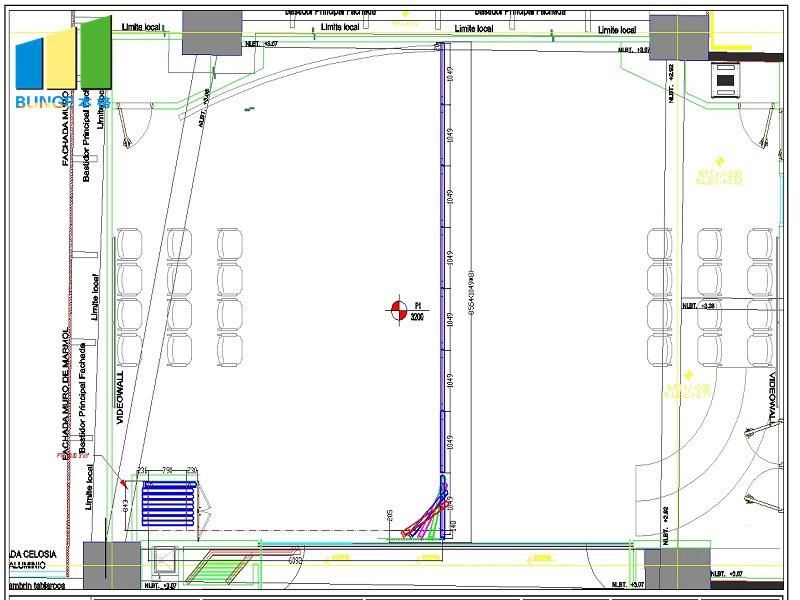

Pproject Feedback

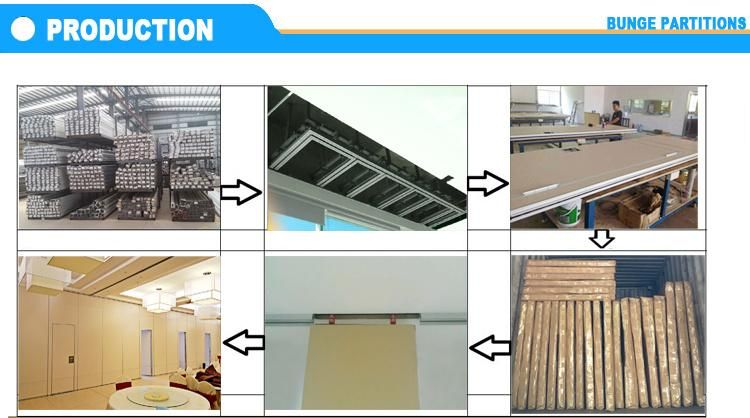

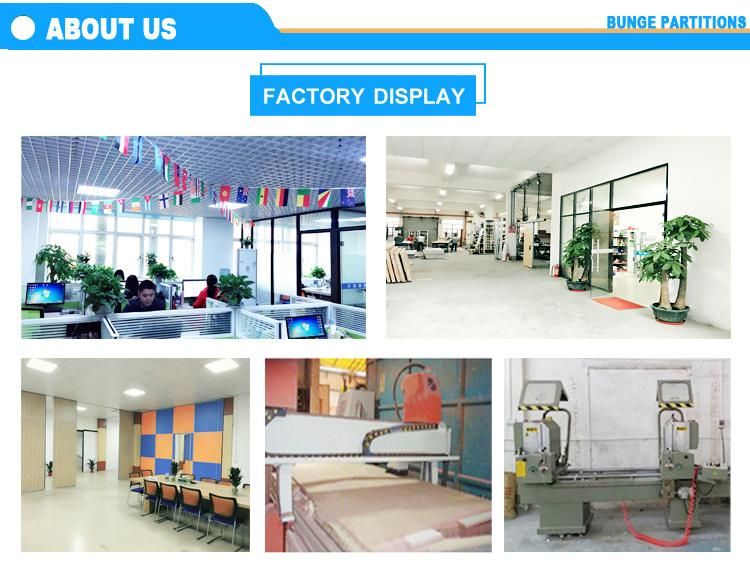

Production

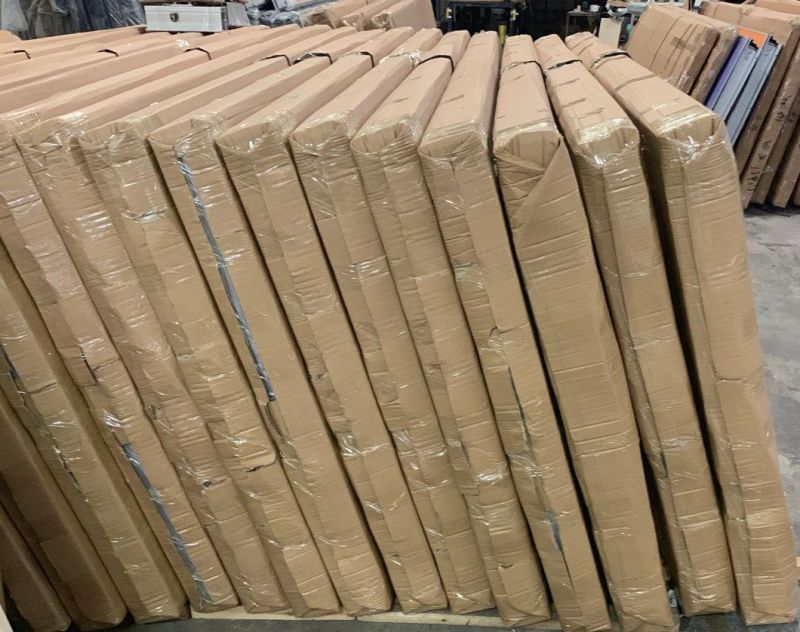

Package And Delivery





About Us



Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions. It also artistically designs and carefully does research and development(R&D). The company has adopted the advanced partition technology of the USA, Germany, and Denmark. We have professional staff with more than 10 years of experience in design, production, and installation.

Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.

Nowadays, the modern trend in the building needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open-plan space, soundproof effect, and easy to operate. The solution of the designers need is the movable partition.

Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound-Proof Series:85MM,100MM;
3.Super High Series: Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame
