• Model NO.：65 mm collapsing glass folding partition
• Material：Glass
• Condition：New
• Product Name：Glass Partition Door
• Application：Hotel and Office
• Suraface Material：Aluminum
• High：Less 3meter
• Size：1220mm*2440mm
• Aluminum Color：Customized
• Payment：T,T
• Package：Carton
• Join Together：Customized
• Transport Package：Carton
• Specification：36 mm thickness
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：94031000
• Production Capacity：50000 PCS Per Month

Specifications

1)Interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.

2)To ensure additional friction connection, shall be integrated with a magnetic strip.

3)Easy element adjustment after installation.

4)Sliding glass partition wall Track system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.

5)Surface panel shall be of 9 mm or 12 mm tempered glass.

Series

BG65 Glazing Glass Partition

BG85 Aluminum Frame Glass Partition

BG85 Sound proof Glass Partition

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

36mm

85mm

85mm

Panel height

Up to 3000mm

Up to 6000mm

Up to 6000mm

Max height

3000mm

6000mm

6000mm

Panel width

800-1100mm

800-1100mm

800-1100mm

Frame construction

Top and bottom aluminum

Aluminum frame

Aluminum frame

Glass thickness

10mm or 12mm single glass

10mm or 12mm single glass

double 10mm glass

Fire safety

Optional Class O

Optional Class O

Optional Class O

Vertical profiles

n/a

n/a

Aluminum anodised with sealing profiles

Retractable seals

n/a

n/a

Aluminum black with double rubber seals

Operation of seals

n/a

n/a

Pass doors

Fixed full height door

Fixed full height door

Fixed full height door

Locking

Optional lock to panel

Optional lock to panel

Optional lock to panel

Sound insulation

n/a

n/a

n/a

Weight

Approx 30 kg/sq M

Approx 32 kg/sq M

Approx 50 kg/sq M

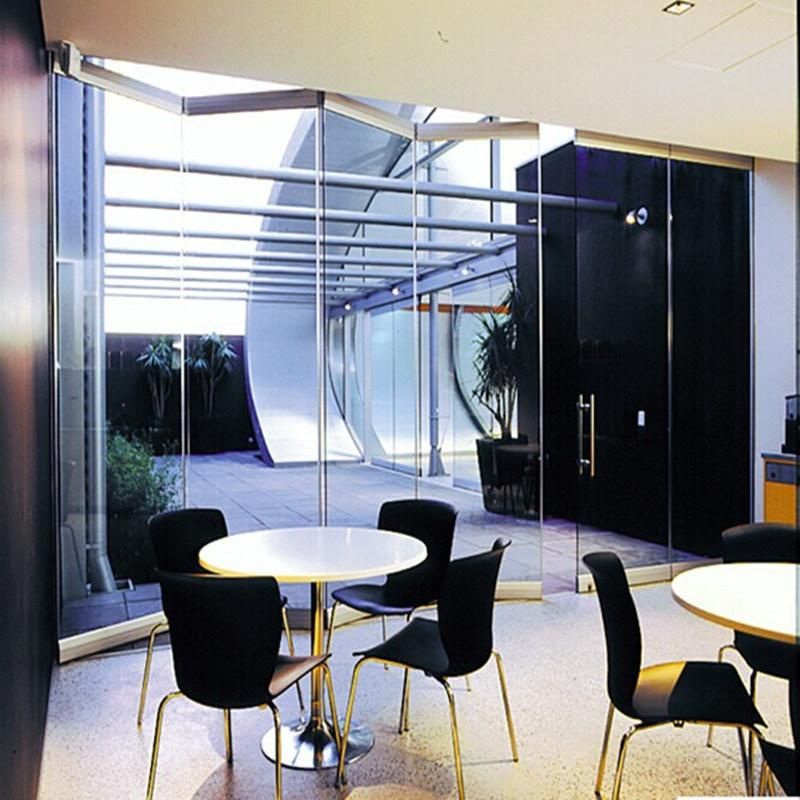

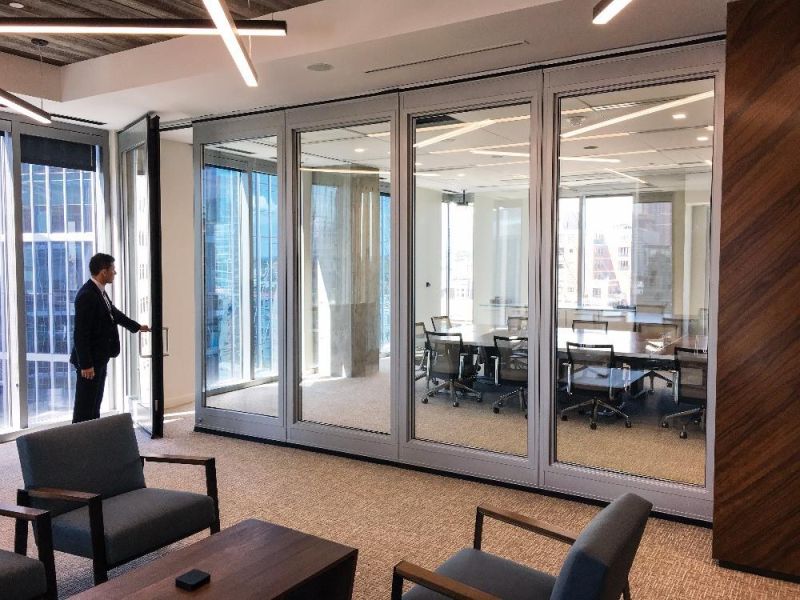

Movable glass partition usually used in office, restaurant, hotel lobby, warehouse, and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider, make our space flexible, maximize the use of our room.

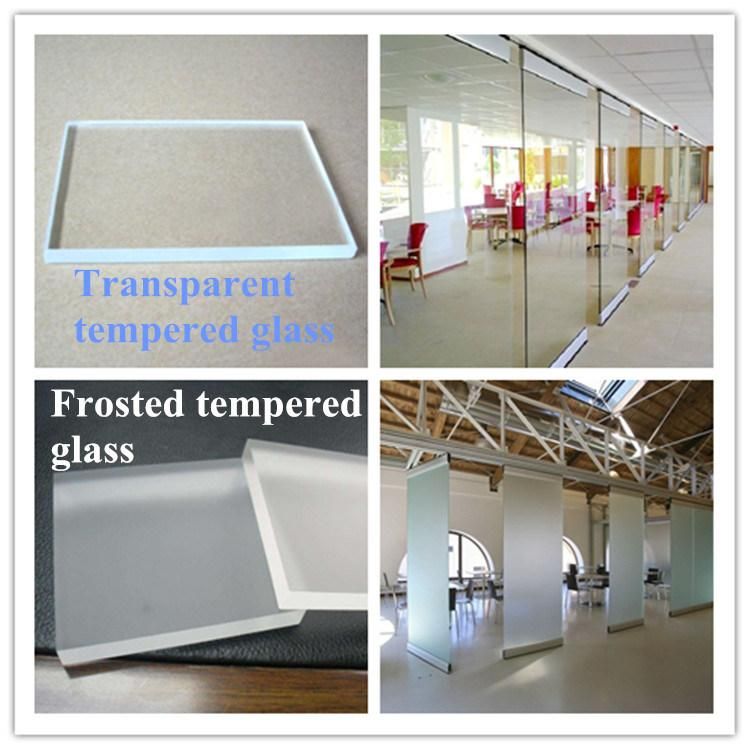

For the glass partition wall, there are two types: aluminum frame partition and frameless aluminum partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition, as the following shows:






Package And Delivery

Our normal packing for movable partition wall is carton package, MDF batten on four section sides, foam board on both front faces.



About Us



Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions. It also artistically designs and carefully does research and development(R&D). The company has adopted the advanced partition technology of the USA, Germany, and Denmark. We have professional staff with more than 10 years of experience in design, production, and installation.

Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.

Nowadays, the modern trend in the building needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open-plan space, soundproof effect, and easy to operate. The solution of the designers need is the movable partition.

Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound-Proof Series:85MM,100MM;
3.Super High Series: Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame

We Offer:


A full professional design service.

Survey and installation guide.

Using top quality materials and components.

A fully experienced work team.

Maintenance contracts to ensure your valuable asset remains in the full work order.

BUNGE Movable Partition Wall FAQ

1. What the Movable Partition Wall use for?

They are the creative way to add flexibility and functionality to your space. extensively applied to star hotels, meeting rooms, ballrooms, clubs, banquet hall, convention centers, multi-function halls, training rooms, and other facilities.

2. Have your partition wall products come in standard sizes?

No, actually all of our movable partition wall sizes are supported customized.

The panels move on the ceiling track with no floor track.

3. How long does it take to install a partition system?

We will provide a detailed schedule on receipt of the order and keep everything updated regularly on progress. The time depends very much on the site and anything which we try to meet wherever possible.

4. Can you give us an initial indication of the cost of a particular system?

Yes. we can give you nice quality based our factory standard partition wall system.

We would need more information and possibly a site visit and survey before confirming an exact price.

5. Do I need to have an architect or building contractor?

Usually, we only offer the site supervision service.if you are already using another contractor for other work then we can work with them to ensure a smooth process.

6. Do I need to provide technical information or drawings?

Yes, we need the partition detail size and finished surface for our factory price and plan discussion.

If you already have technical information or drawing then we can use them to build and install the selected products.

7. Are your products guaranteed?

Yes,all of our products carry a full 3 Year guarantee, covering all parts, and defects.

We can also provide an extended warranty if require and the products are expected to last a lifetime.
