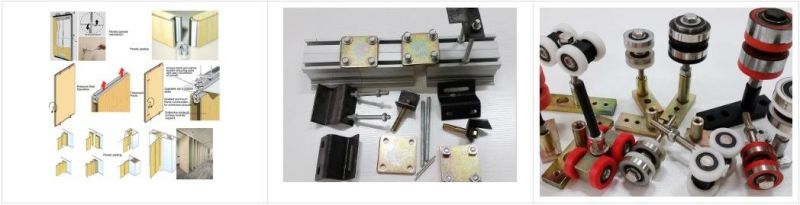

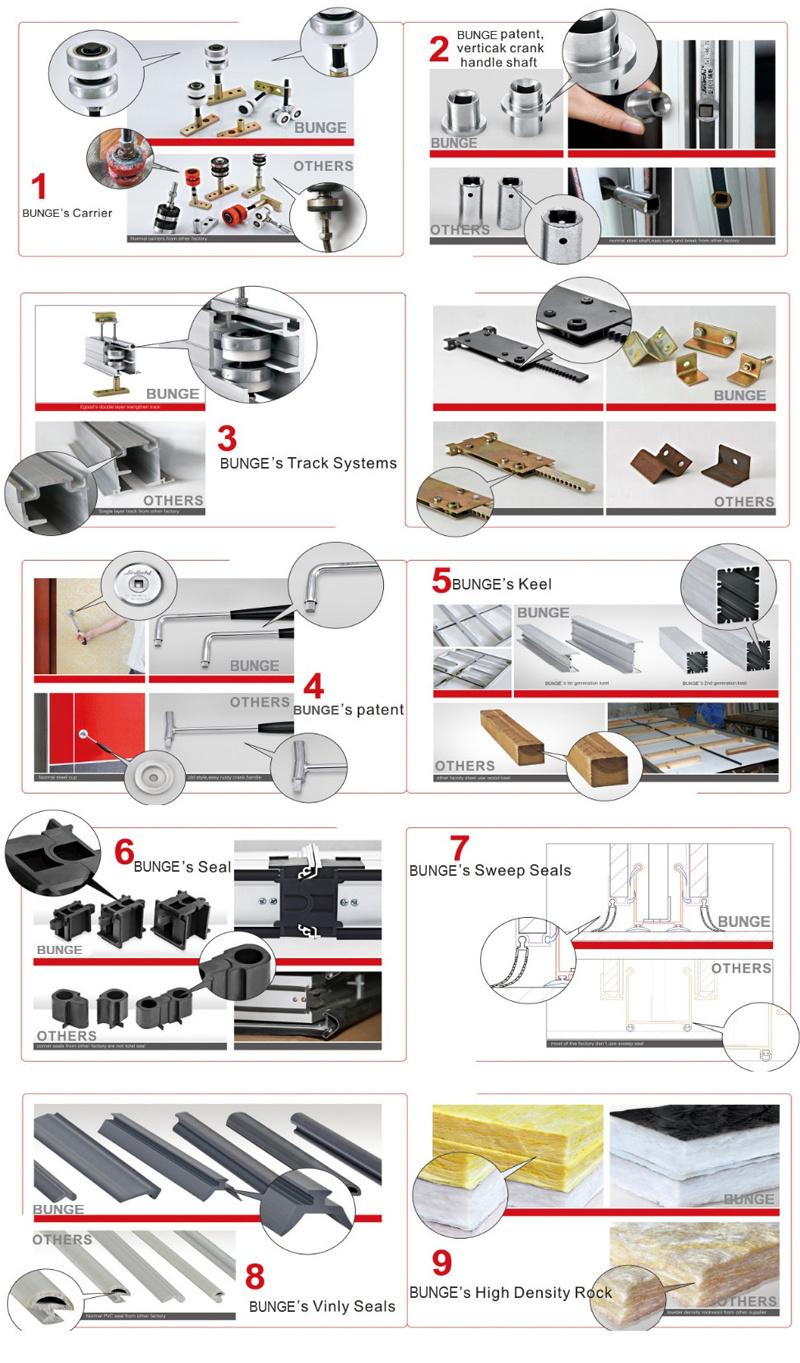

Components of Hotel Partition Walls

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the hotel sound proof partition walls with wheels.

Wheels/Rollers:  It is the carrier for the sliding partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.

Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.

Handle: Operate the retractable being up and down.

Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the hotel partition walls.

MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

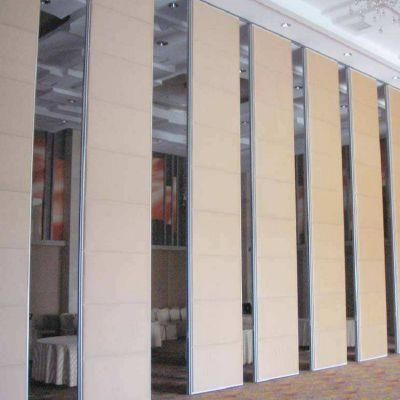

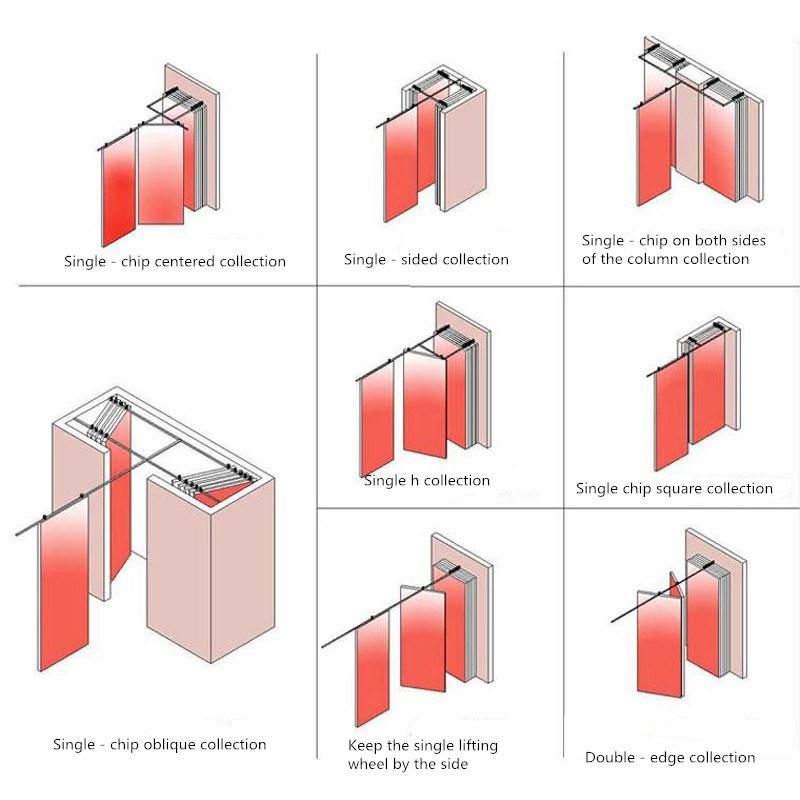

Parking style of movable partition wall

As you know, when we do not use the hotel sound proof partition walls, we can park them to the parking area. Actually there are many parking styles for the hotel partition walls, all of the clients can choose the suitable one and we can adjust based on their own project site. If you need some pocket doors to hide the panels, BUNGE Factory also can produce for you.





Difference finish of movable partition wall

Wooden (MDF, Plywood bare raw finish)    (Melamine, Veneer)
Fabric (fabric with mdf board hard covers)    (fabric with sponge soft covers)
Leather (leather with mdf hard covers)    (leather with sponge soft covers)
Wallpaper, Vinyl, Fireproof board
Tempered glass, mirror etc.

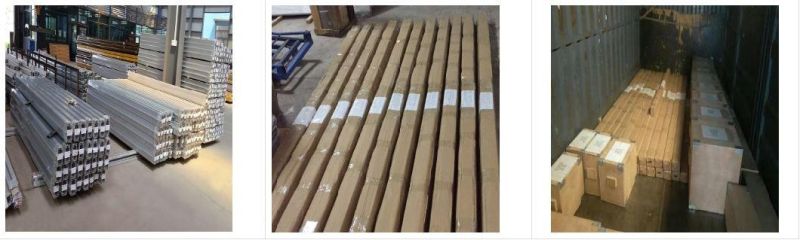

Package for Tracks System



Finished Project

Project site: India

Model: BUNGE 85 mm hotel partition walls

Width: 3*10550 mm,1*6900 mm

Height: 3760 mm

Total:  4 sets, 145 square meters

Finish: Melamine

Color: CS-3087
