• Model NO.：85 series partitions wall
• Advantage：Movable, Sliding, Folding
• Usage：Office, Banquet Hall, School
• Drawing：Free
• Sample：Free
• Transport Package：Paper Packaging, Finally Packed in Wooden Carton
• Specification：Thinckness: 85 mm
• Trademark：EBUNGE
• Origin：China(Mainland)
• HS Code：94031000
• Production Capacity：5000 Square Meter Per Month

Modernized Soundproof Movable partition 1.Hanging on ceilingThe floor without a track, just put the rail mounted on the ceiling2.Excellent QualityEach pieces of partition can turn around 360 degree.3.Stable and secureAfter partition is stable and reliable, and is not easy to swing4.Energy efficientThe large space divided into a small space, in order to reduce air conditioning power consumption;5.Heatproof&fireproofGood heat insulation performance, Adopt effective fire prevention materials6.Elegant appearanceSurface any adornment, can unite with indoor adornment effect7.Easy to collectCan be hidden in the special coffer, does not affect the overall appearance8.Various applicationsHotels, exhibition  halls, restaurants, multi-functional rooms etc.

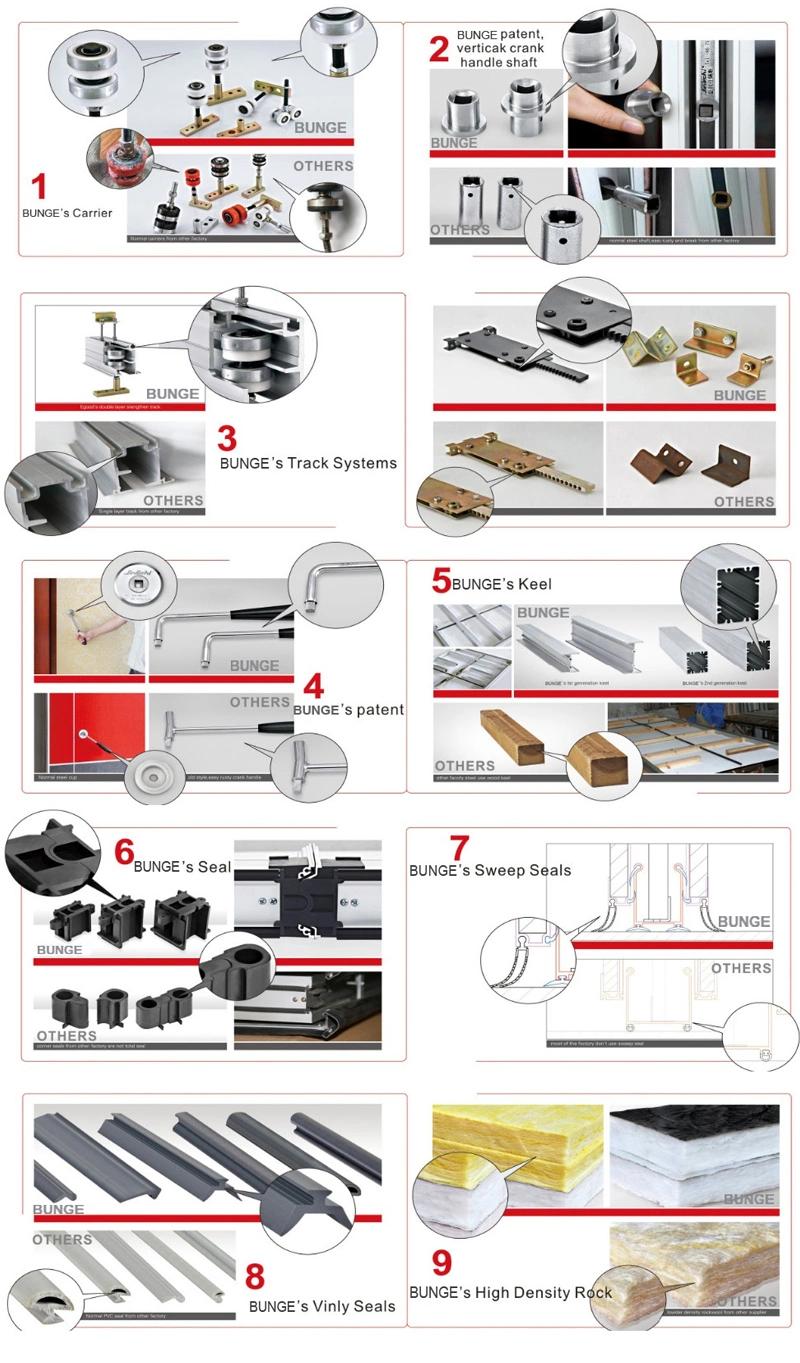

Accessories details:

Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.

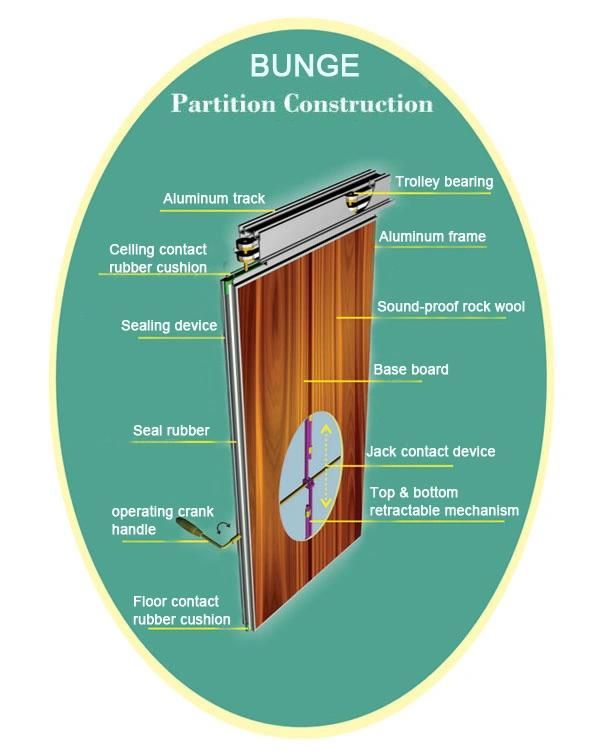

Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.



Panel Surface Finish:The panel surface will be as per the clients requirement finished either in Sliwal factory - China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.



Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.




How do the movable partition wall work?

The continuously hinged panels are pulled from their parked position to 'close' (or extend) the wall and pushed back to the parked position to 'open' (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.


Our easy lock-up set.
Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.


Retractable Pressure Seals.
Once the panel is positioned, they are sealed in place with retractable pressure seals



Telescopic sleeve panel.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.
