• Model NO.：65mm
• Material：Wooden
• Condition：New
• Thickness：65 mm
• Product Name：Soundproof Partition Wal
• Panel Height：Less Than 4 M
• Panel Width：800-1200 mm
• Surface：Melamine,Fabric,Leather
• Application：Classroom,Office,Meeting Room
• Warranty：3-5 Years
• Transport Package：Carton Package, MDF Batten on Four Section Sides
• Specification：65 mm
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：940310
• Production Capacity：5000sq,Month
• Package size per unit product：200.00cm * 122.00cm * 6.50cm
• Gross weight per unit product：25.000kg

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc.  (Customized)

Features & Benefits:
1. Movable, interlocking panels suspended from an overhead track system
2. Sound rated panels for effective noise control
3.Available in paired (folding) and individual (Omni-directional) configurations
4.Can include access doors for easy entry and exit
5. Blend with a room's aesthetics, similar to a permanent wall when extended.
6.Available in a wide range of colors and finishes, including MDF, Melamine, Fabric, Leather, veneer, Landscape painting, Wallpaper, Wood moldings, etc.

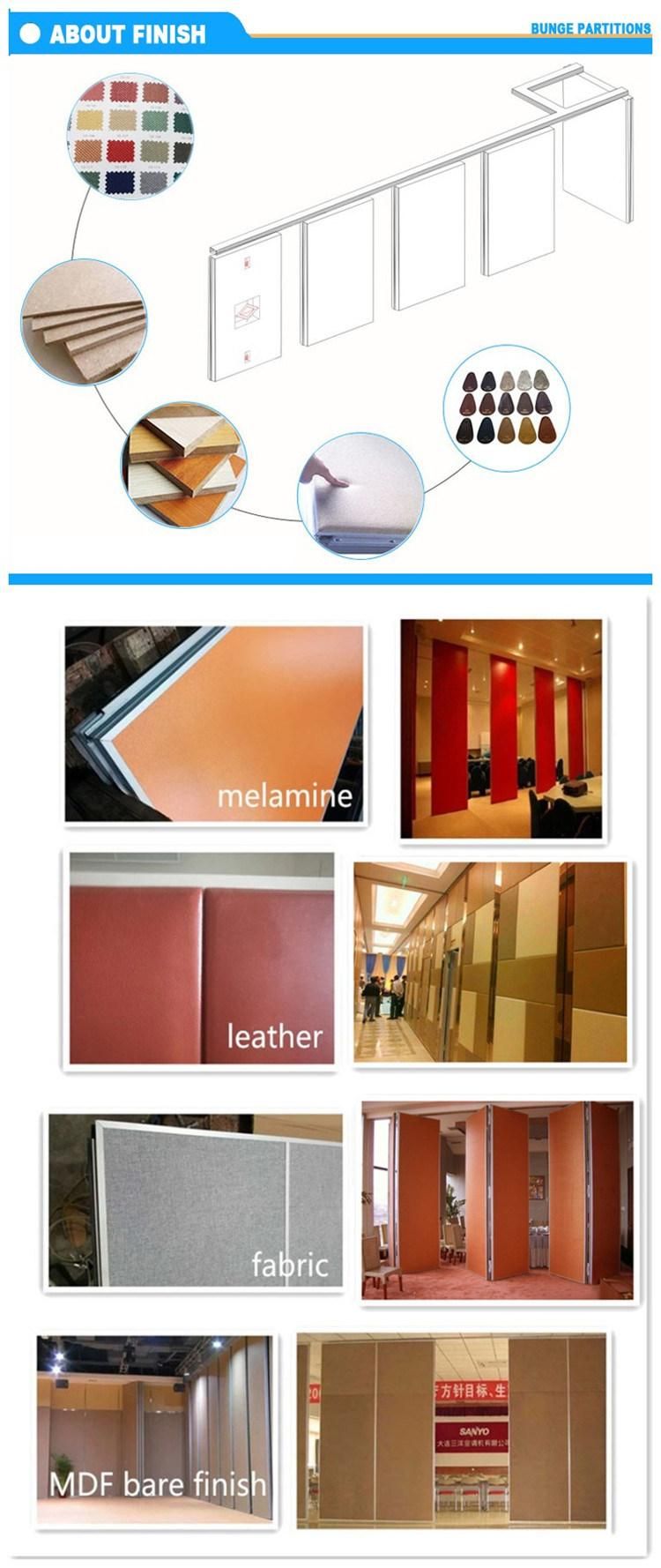

Surface
Different surface use in different areas. Our main surface is MDF melamine, it can be easier to clean.
Also the fabric and leather surface is very popular in the conference room or banquet hall.
And like dancing rooms or classrooms, clients prefer the mirror surface.
Also, we can design surface PU leather with printing photos.
If the client prefers to paint color on panels, we suggest Mdf bare finish. If you prefer to glue wallpaper, the plywood surface is a good choice.

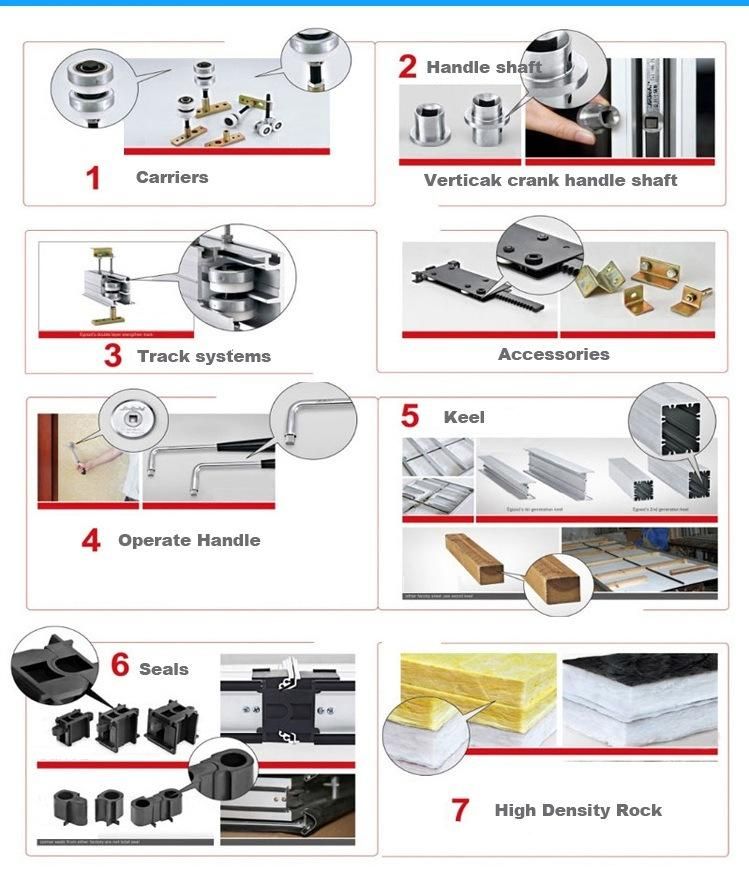

Accessories
We can also provide sliding aluminum profile samples for clients.
Such as sliding aluminum track, roller, connector, aluminum frame, top and bottom seal rubber, retractable mechanism and etc.

Tracks: Made of good quality anodized aluminum 6063-T5 materials, hanging the retractable partitions panels with wheels.
Wheels/Rollers:  It is the carrier for the retractable partitions, let the panels move more flexibly. Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC), durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3, help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form an excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance the acoustic performance of the retractable partitions.
MDF board: 9 mm thickness, density of 760kg/m3, absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

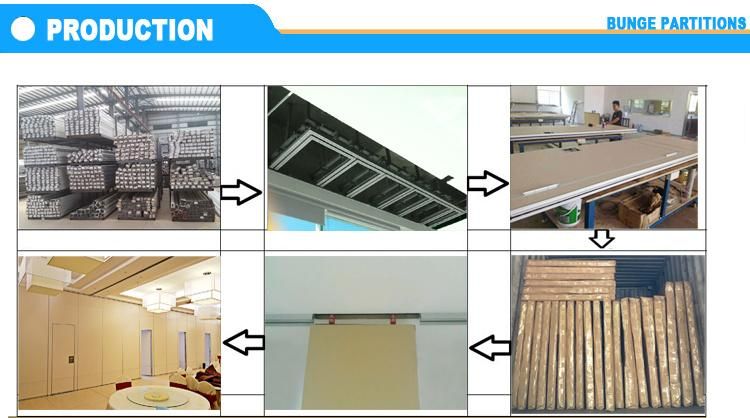

Production

Packaging & Shipping

We have clients from all over the world, they are satisfied with our soundproof movable partition walls.

When they came to our factory, they all surprised at our environment and our technology.

There is a big movable wall showroom in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition, etc.

Sliding partition wall when we finished production, we will use carton packing and MDF board to pack movable panels.
And we will also make one or more packing boxes for clients. It can reduce damage during transportation.
We usually transport movable panels by sea, such as CIF price.
Some aluminum profiles, sliding track, glass clips and other accessories we can transport by courier, like DHL or FedEx.

Free Sample in 10 Days   Inquiry now and you will have your sample in 10 days if you pay the express.

3-year Warranty                  The acoustic room divider made of  6063-T5 alumina, anti-aging, no fading and abrasion in 10 years

OEM Service     Your logo can be printed on the packaging carton

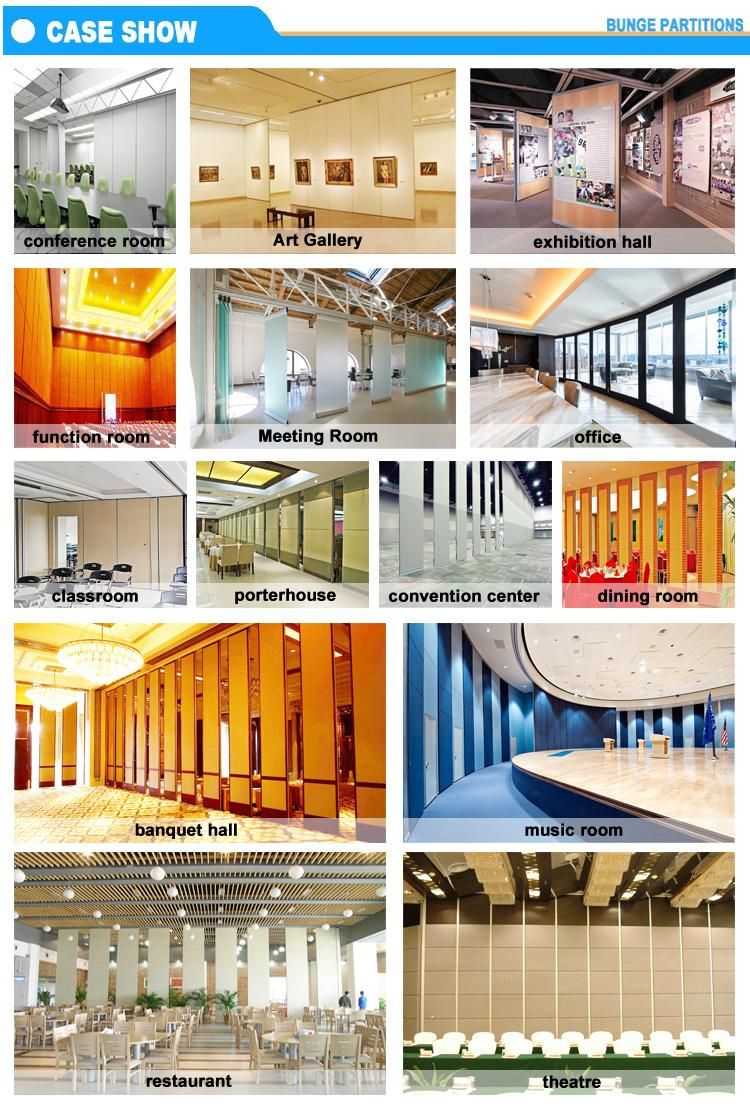

Case show

About us
Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions. It also artistically designs and carefully does research and development(R&D). The company has adopted the advanced partition technology of the USA, Germany, and Denmark. We have professional staff with more than 10 years of experience in design, production, and installation.
Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
Nowadays, the modern trend in a building needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open-plan space, soundproof effect, and easy to operate. The solution of the designers need is the movable partition.
Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound-Proof Series:85MM,100MM;
3.Super High Series: Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame

Client visiting
We have clients from all over the world, they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There is a big movable wall showroom in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition, etc.

Our service:

1. Profession--We have professional sales staff. Any questions will be replied within 24 hours.

2.Price--Because we are factory, so we can provide nice quality and lower price products.

3. Service--Easy and convenient to transport, we promise a timely delivery date and good after-sale service.

4.Team--We have our own engineering department, according to your request for your tailor-made for your product.

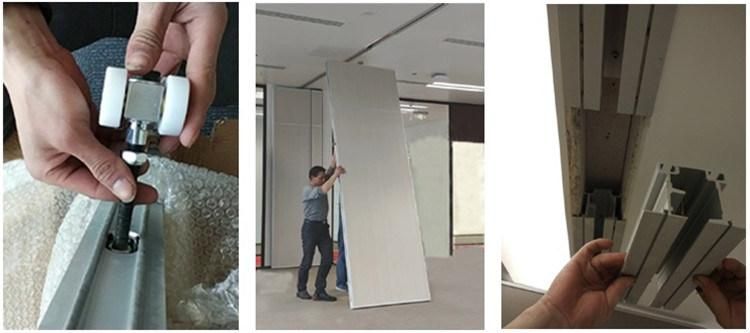

5. Installing--Our engineer can come to teach installing, and we will also supply installing drawings and video.
