• Model NO.：85 mm acoustic movable partitions
• Material：Wood
• Condition：New
• Product Name：Operable Partition
• Model Number：65 mm Sound Proof Partition
• Size：Partition Walls Customized
• Width：800 - 1220 mm
• Advantage：Sound Proofing
• Sample：Free
• Thickness：65mm
• Surface Color：Customzied
• Finish：Melamine
• Payment：T,T
• Transport Package：Carton Package, MDF Batten on Four Section Sides
• Specification：85 mm thickness
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：94031000
• Production Capacity：50000 Square Meters Per Month

Series

BG65

BG85

BG100

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

65mm

80mm / 85mm

100mm

Panel height

Up to 4000mm

Up to 6000mm

Up to 18000mm

Max height

4000mm

6000mm

18000mm

Panel width

600-1230mm

600-1230mm

600-1230mm

Frame construction

Aluminum frame

Aluminum frame

Aluminum frame

Face material

9mm

9mm / 12mm

12mm

Fire safety

Optional Class I or O

Optional Class I or O

Optional Class I or O

Vertical profiles

Aluminum anodized with sealing profiles

Aluminum anodized with sealing profiles

Aluminum anodized with sealing profiles

Retractable seals

Aluminum black with
double rubber seals

Aluminum black with double rubber seals

Aluminum black with double rubber seals

Operation of seals

Manual, with supplied
operating handle

Manual, with supplied operating handle

Manual, with supplied operating handle

Locking

Optional lock to pass doors

Optional lock to pass doors

Optional lock to pass doors

Pass doors

Single open in panel or
double open in two panel

Single open in a panel or double open in two panel

Single open in a panel or double open in two panel

Sound insulation

20-32dB Rw

28-36dB Rw

32-50dB Rw

Weight

Approx 22-35kg/sq M

Approx 25-40kg/sq M

Approx30-48kg/sq M

Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc.  (Customized)

2.Specification

1)Folding room partition movable wall interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.
2)Folding room partition movable wall to ensure additional friction connection, shall be integrated with a magnetic strip.
3)Folding room partition is an easy element adjustment after installation.

4)Folding room partition movable wall track system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.
5)Folding room partition movable wall surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

3.Installation:

The movable partition wall is composed of many single panels.Each panel is equipped with single or two hanging rollers.It depends on the horizontal hanging roller to make the partition panel hanging along the track.The vertical contact points of every single panel are connected by concave and convex positions.The seal rubbers are embedded and panel top and bottom parts are equipped with a retractable mechanism.

When closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.

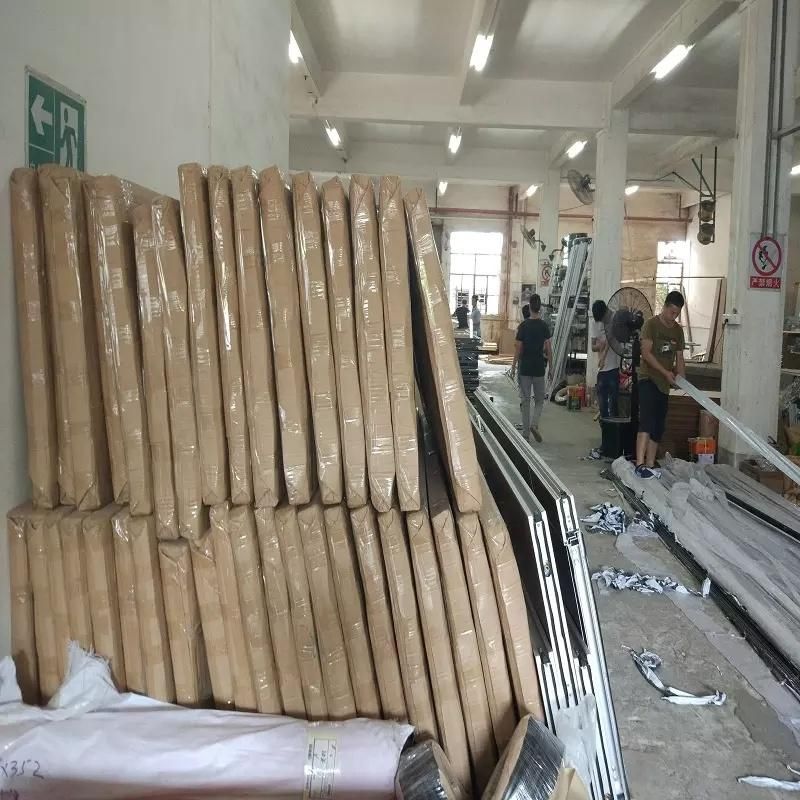

4.Production

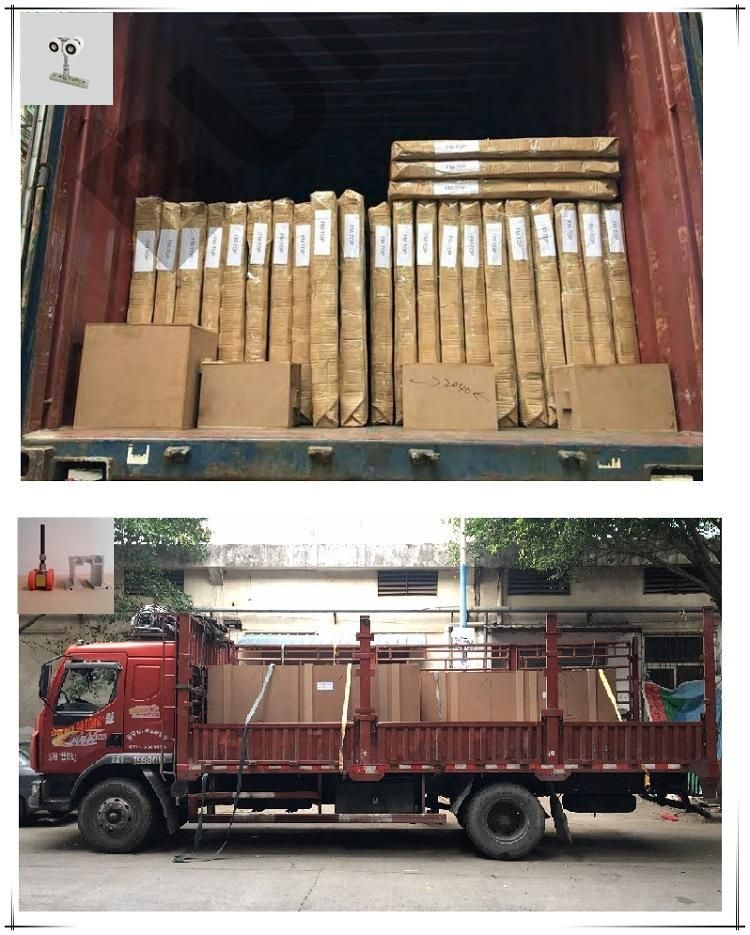

5.Package And Delivery

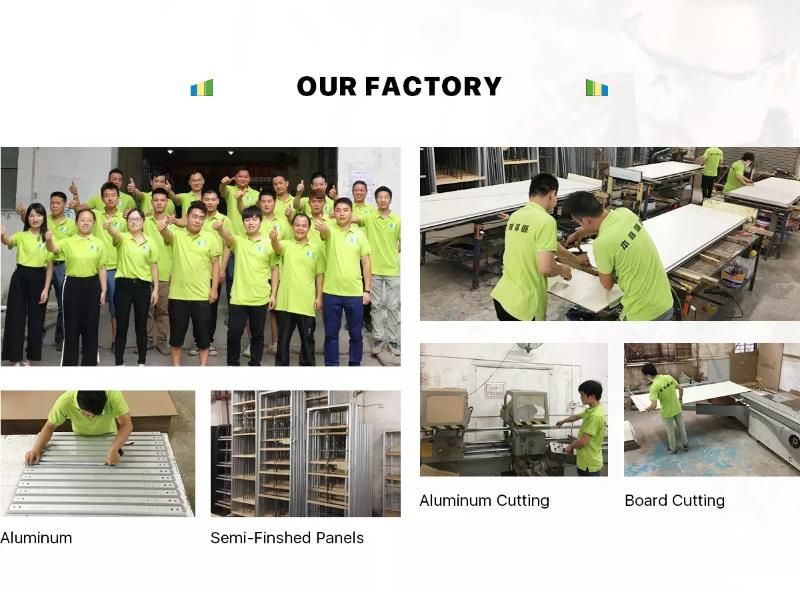

6.Ebunge Factory

Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is an ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.

As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client needs an installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will reply in 12 hours if the clients have any questions.
