• Model NO.：65 series partitions wall
• Advantage：Movable ,Sliding ,Folding
• Usage：Office ,Banquet Hall ,School
• Drawing：Free
• Sample：Free
• Transport Package：Paper Packaging, Finally Packed in Wooden Carton
• Specification：Thinckness: 65mm
• Trademark：EBUNGE
• Origin：China(Mainland)
• HS Code：94031000
• Production Capacity：5000 Square Meter Per Month

Modernized Soundproof Movable partition

1.Hanging on ceiling

The floor without a track, just put the rail mounted on the ceiling

2.Excellent Quality

Each pieces of partition can turn around 360 degree.

3.Stable and secure

After partition is stable and reliable, and is not easy to swing

4.Energy efficient

The large space divided into a small space, in order to reduce air conditioning power consumption;

5.Heatproof&fireproof

Good heat insulation performance, Adopt effective fire prevention materials

6.Elegant appearance

Surface any adornment, can unite with indoor adornment effect

7.Easy to collect

Can be hidden in the special coffer, does not affect the overall appearance

8.Various applications

Hotels, exhibition  halls, restaurants, multi-functional rooms etc.

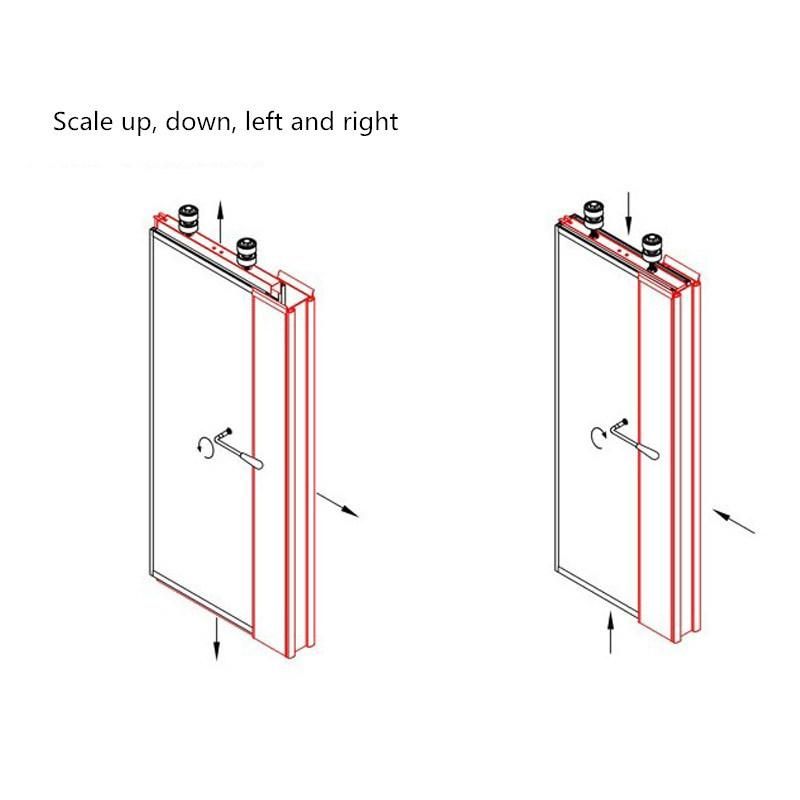

The extension range under the partition wall is 20-25mm to ensure that the partition wall can be pushed and pulled without obstacles. When partition wall is pushed pull when proper position, need to rotate make a hand 180 degrees make fluctuation and telescopic mechanism is sealed with smallpox and ground respectively, in order to enhance the sound insulation effect of the product



After pushing and pulling of the last screen to proper position, because need is sealed fluctuation is pressed, make the telescopic position that has 150mm between last screen and wall, need is in at this moment telescopic board face rotates make a hand to make between screen and wall complete seal.

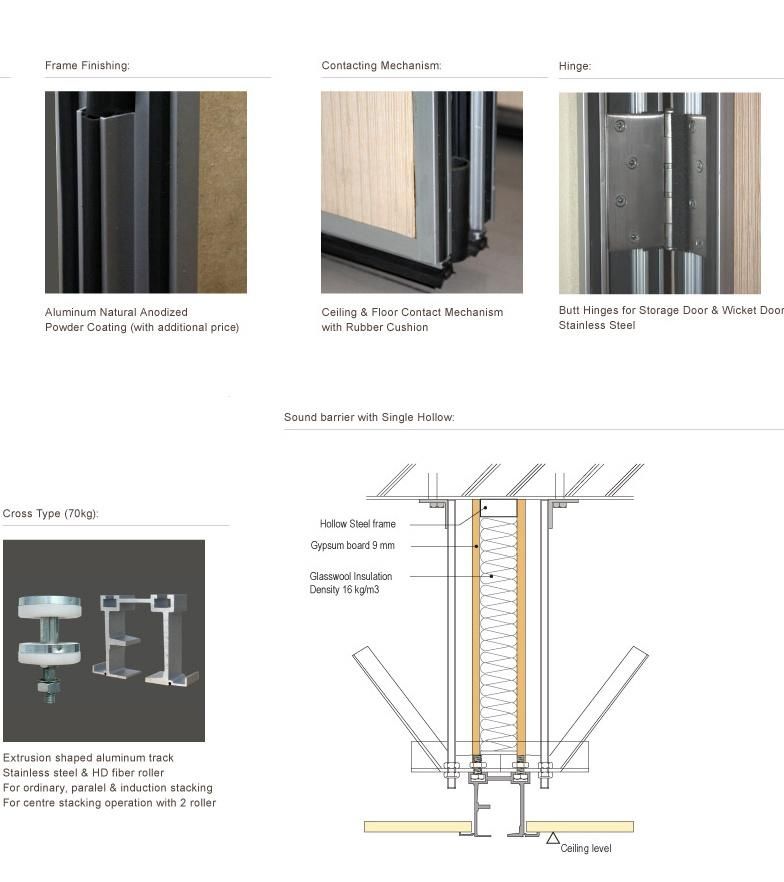

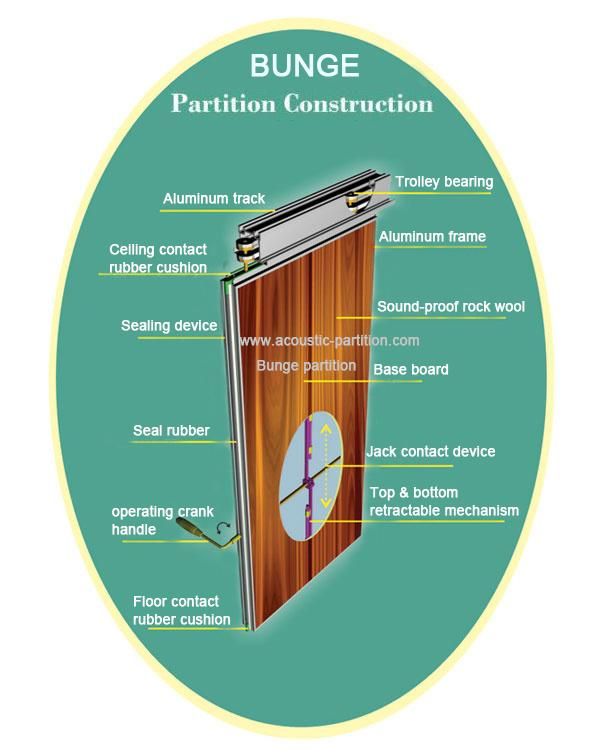

Components of Office Partition Walls:

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.

Wheels/Rollers:  It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.

Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.

Handle: Operate the retractable being up and down.

Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.

MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

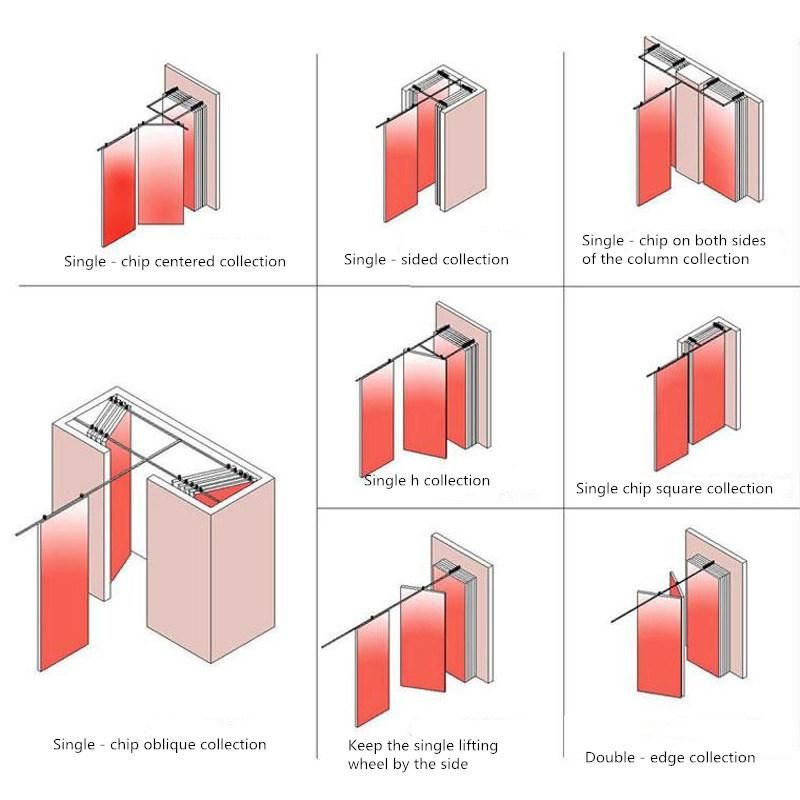

Close board when, partition wall can be concealed in special store ark, do not affect integral and beautiful

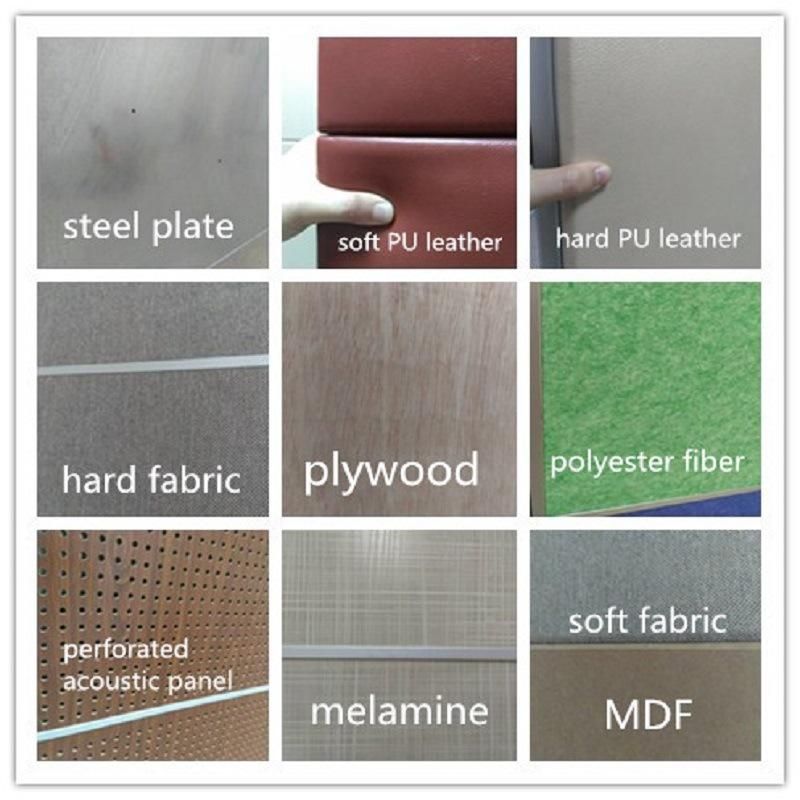

Our partition products of decorative panels, there are fabric, leather, melamine , steel, polyester fiber, mirror, PVC board and so on.Welcome to customize, support ODM OCM service

A variety of decorative choices, and the original environment with natural, beautiful and neat

Packing and shipping

Our service


1:Factory direct price

2:Nice quality

3:Quick shipping with 5 days

4:Small order welcome

5:More than 3 years warranty6:Support customer designs OEM ODM service

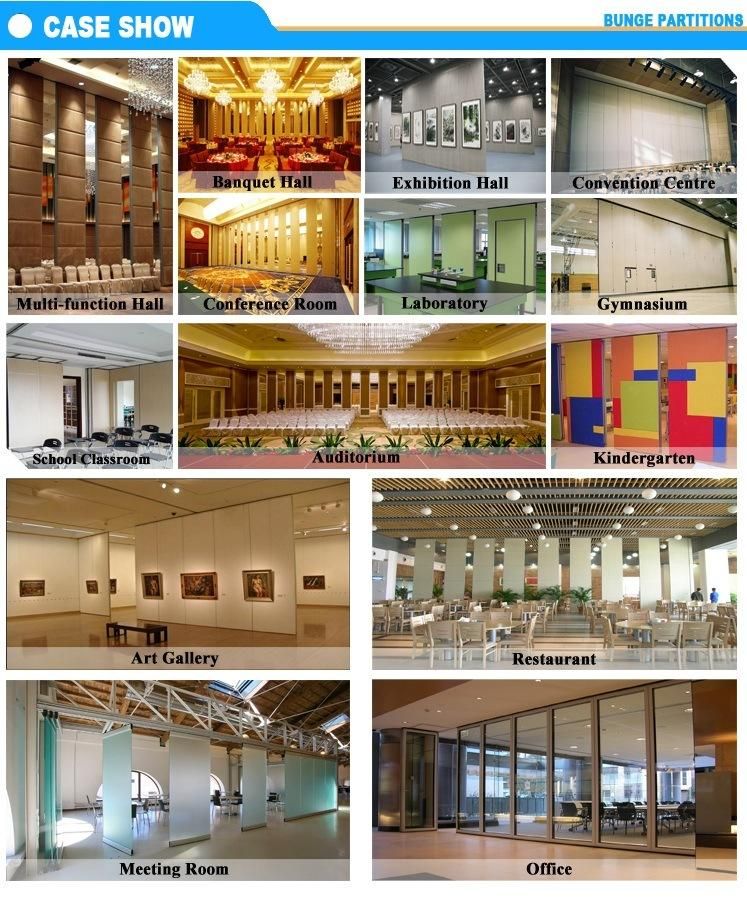

Factory and case show






FAQ


1:What you should you do on site?

A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.



2:How to install?

We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.



3:What is lead time ?

The lead time is 7 days to 10days.



4:How to transport?

Sea transport is a common mode of transportation.In an emergency,can be air freight .



5:How do the goods packing?

Carton paper package ,MDF batten cover all around cotner.



6:What is procurement procedure?

Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)

Secondly, we offer you the movable wall layout drawings for your confirmation.

Thirdly, we quote the movable wall in acordance with confirmed
