• Model NO.：36mm Glass Parititons
• Customized：Customized
• Material：Glass
• Condition：New
• Product Name：Glass Partitions Wall
• Application：Office,Conference Room
• Structure：Aluminum Track,Trolley Bearing
• Glass Thickness：9mm 10mm 12mm
• Service：OEM Service
• Model Number：Series 65 mm
• Suraface Material：Aluminium Frame and Glass
• Transport：Depends on Client
• Payment：T,T
• Sample：Free
• Transport Package：Carton
• Specification：65 mm thickness
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：94031000
• Production Capacity：50000 Square Meters Per Month
• Package size per unit product：250.00cm * 130.00cm * 8.00cm
• Gross weight per unit product：30.000kg

Specifications

 1)Sliding glass partition wall interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.

 2)To ensure additional friction connection, shall be integrated with a magnetic strip.

 3)Easy element adjustment after installation.

 4)Track system shall be Extruded aluminum, maintenance-free with heavy-duty ball bearing steel rollers.

 5)Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

Series

BG65 Glazing Glass Partition

BG85 Aluminum Frame Glass Partition

BG85 Sound proof Glass Partition

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

36mm

85mm

85mm

Panel height

Up to 3000mm

Up to 6000mm

Up to 6000mm

Max height

3000mm

6000mm

6000mm

Panel width

800-1100mm

800-1100mm

800-1100mm

Frame construction

Top and bottom aluminum

Aluminum frame

Aluminum frame

Glass thickness

10mm or 12mm single glass

10mm or 12mm single glass

double 10mm glass

Fire safety

Optional Class O

Optional Class O

Optional Class O

Vertical profiles

n/a

n/a

Aluminum anodised with sealing profiles

Retractable seals

n/a

n/a

Aluminum black with double rubber seals

Operation of seals

n/a

n/a

Pass doors

Fixed full height door

Fixed full height door

Fixed full height door

Locking

Optional lock to panel

Optional lock to panel

Optional lock to panel

Sound insulation

n/a

n/a

n/a

Weight

Approx 30 kg/sq M

Approx 32 kg/sq M

Approx 50 kg/sq M

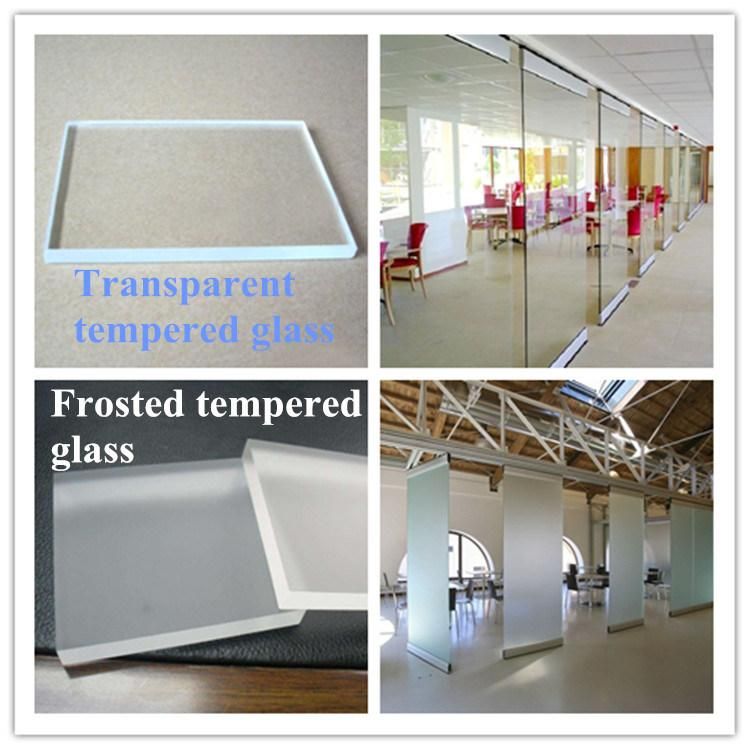

For the glass partition wall, there are two types: aluminum frame partition and frameless aluminum partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition, as the following shows:


Installation




Package And Shipping



About Us

Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing movable partitions. It also artistically designs and carefully does research and development(R&D). The company has adopted the advanced partition technology of the USA, Germany, and Denmark. We have professional staff with more than 10 years of experience in design, production and installation.

Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.

Nowadays, the modern trend in the building needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open-plan space, soundproof effect, and easy to operate. The solution of the designers need is the movable partition.

Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound-Proof Series:85MM,100MM;
3.Super High Series: Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame
