• Model NO.：Frameless glass partition
• Product Name：Sliding Glass Partition Wall
• Panel Height：Less Than 3 M
• Panel Width：800-1200 mm
• Size：Custom Designed Size
• Application：Conference Room,Office,Hotel
• Glass Thickness：10mm or 12mm
• Transport Package：Carton Package, MDF Batten on Four Section Sides
• Specification：36mm
• Trademark：BUNGE
• Origin：Guangzhou, China
• HS Code：940310
• Production Capacity：5000sq,Month



Specifications

1)Sliding glass partition wall interlocking male / female trapezoidal vertical  aluminium profiles, for soundproof connection between elements.

2)To ensure additional friction connection, shall be integrated with magnetic strip.

3)Easy element adjustment after installation.

4)Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.

5)Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

Technical Details

Series

BG65 Glazing Glass Partition

BG85 Aluminum Frame Glass Partition

BG85 Sound proof Glass Partition

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

36mm

85mm

85mm

Panel height

Up to 3000mm

Up to 6000mm

Up to 6000mm

Max height

3000mm

6000mm

6000mm

Panel width

800-1100mm

800-1100mm

800-1100mm

Frame construction

Top and bottom aluminum

Aluminum frame

Aluminum frame

Glass thickness

10mm single glass

10mm or 12mm single glass

double 10mm glass

Fire safety

Optional Class O

Optional Class O

Optional Class O

Vertical profiles

n/a

n/a

Aluminum anodised with sealing profiles

Retractable seals

n/a

n/a

Aluminum black with double rubber seals

Operation of seals

n/a

n/a



Pass doors

Fixed full height door

Fixed full height door

Fixed full height door

Locking

Optional lock to panel

Optional lock to panel

Optional lock to panel

Sound insulation

n/a

n/a

n/a

Weight

Approx 30 kg/sq M

Approx 32 kg/sq M

Approx 50 kg/sq M

Surface:

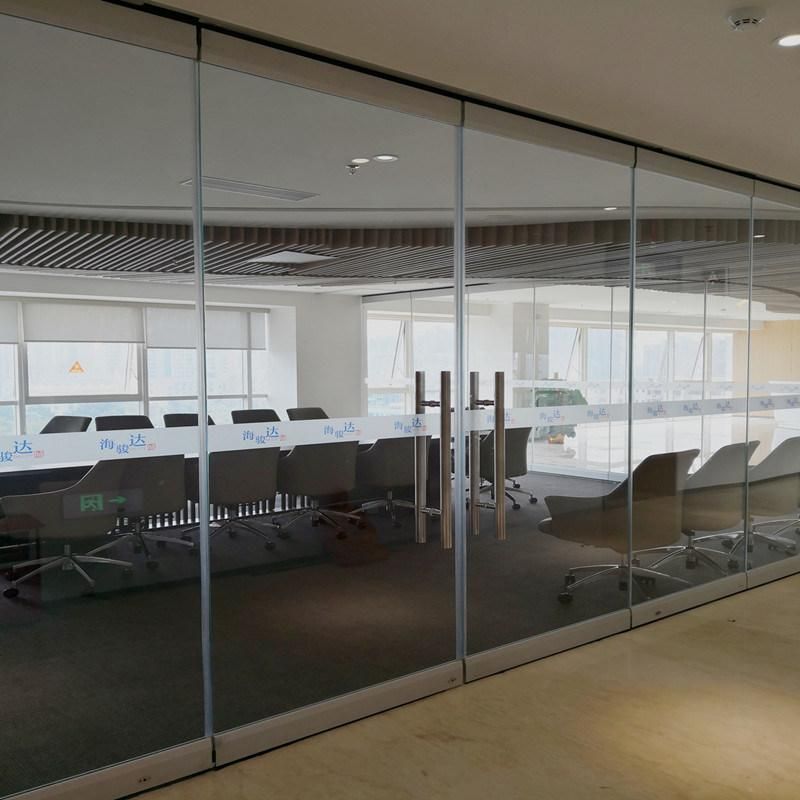

Movable glass partition usually used in office,restaurant,hotel  lobby,wharehoue and any other place where we want to see the inside view and with less stringent insulation requirements. It is a good room divider,make our space flexible,maximize the use of our room.

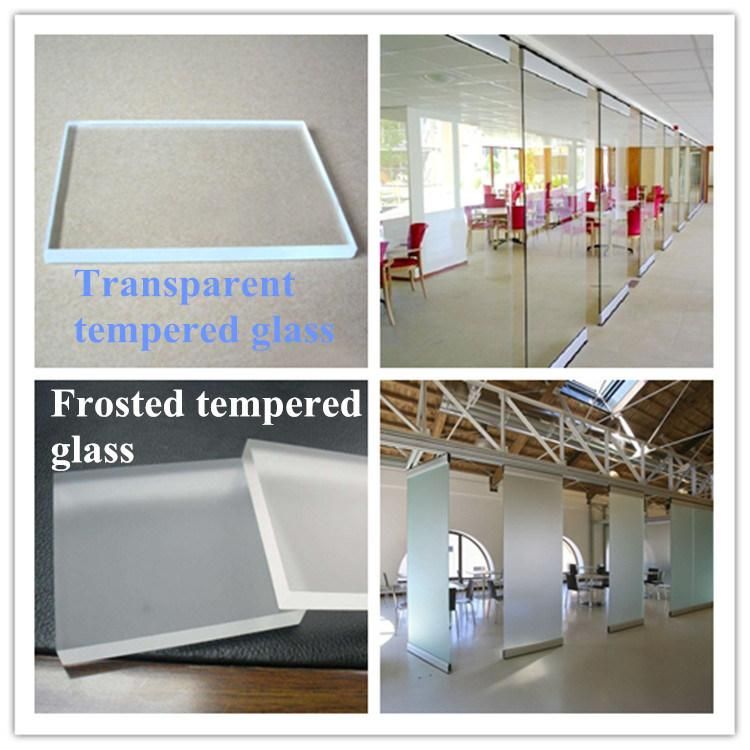

For the glass partition wall,there are two type:aluminum frame partition and frameless aluminium partition. They can be customized to transparent tempered glass partition or frosted tempered glass partition,as following shows:

Feature:

1.Sliding glass partition has heavy-capacity rail to secure the partition.

2.Precision welding between tracks to reduce maintenance rate.

3.Tempered glass, simple and bright.

4.The upper and lower aluminum glass partition clips are designed as curved shapes.

5.The glass is fixed by drilling it into the clips, ensuring safety and durability.

6.The lock with hidden blots incorporates a fixing and closing function for the partition.

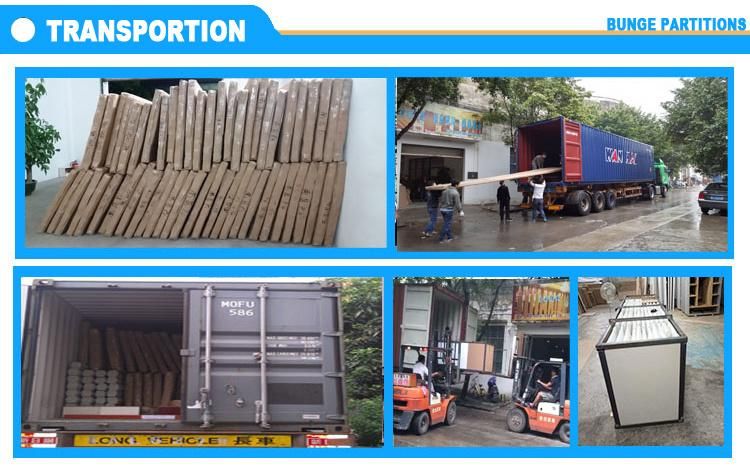

Packaging & Shipping:
Our normal packing for movable partition wall is carton package, MDF batten on four section sides ,foam board on both front face.

Free Sample in 10 Days    Inquiry now and you will have your sample in 10 day if you pay the express.

3-year Warranty                    The acoustic room divider made of  6063-T5 alumina, anti-aging, no fading and abrasion in 10 years

OEM Service         Your logo can be printed on the packaging carton

We are a professional comprehensive office glass partition Manufacturer in Guangzhou, China, we make sure to offer the best solutions of space flexible.

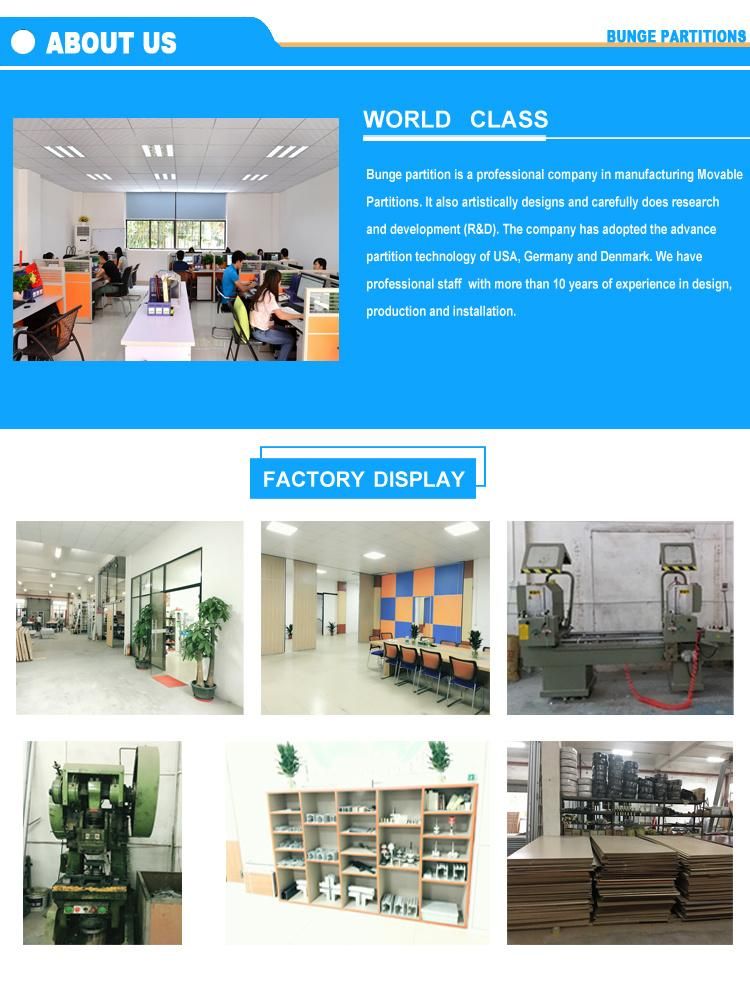

About us
Guangdong Bunge Building Matarial Industrial Co.,Ltd is professional company in manufacturing movable partitions.It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staffs with more than 10 years of experience in design,production and installation.

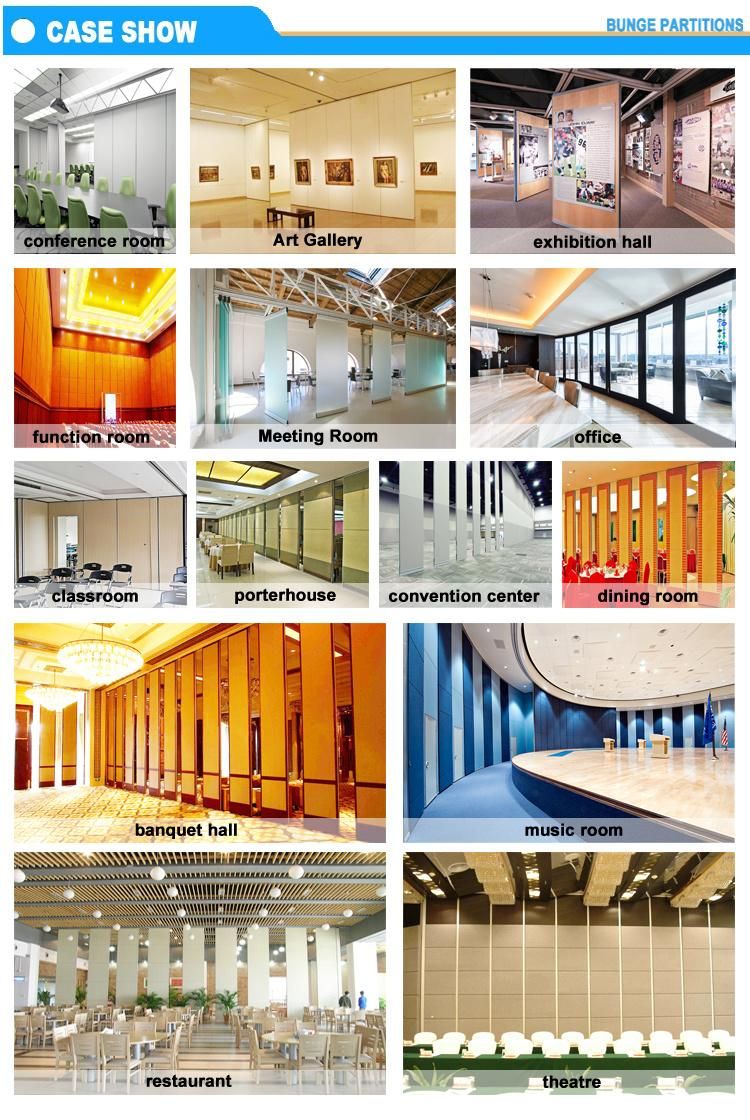

Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.

Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.

Client visiting
We have clients from all over the world,they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.

Our service:

1.Profession--We have professional sales staff. Any questions will be replied within 24 hours.

2.Price--Because we are factory,so we can provide nice quality and lower price products.

3.Service--Easy and convenient to transport,we promise timely delivery date, and good after-sale service.

4.Team--We have our own engineering department, according to your request for your tailor-made for your product.

5.Installing--Our engineer can come to teach installing,and we will also supply installing drawings and vide
