Hotel Ballroom Movable Walls Large-Scale Banquet Hall Operable Partition Walls
Guangdong Bunge Building Material Industrial Co., Ltd.- Style：European
- Color：Brown
- Certification：ISO9001
- Customized：Customized
- Material：Wood
- Condition：New
Base Info
- Model NO.：65 mm collapsing folding partition
- Product Name：Operable Partition Walls
- Application：Hotel and Office
- Surface Material：Melamine
- Width：1220mm
- High：Less 4m
- Package：Carton
- Warranty：5 Years
- After-Services：Online Services
- Payment：T,T
- Transport Package：Carton
- Specification：1220mm*2440*65mm
- Trademark：EBUNGE
- Origin：Guangzhou, China
- HS Code：94031000
- Production Capacity：50000 Square Meters Per Month
Description

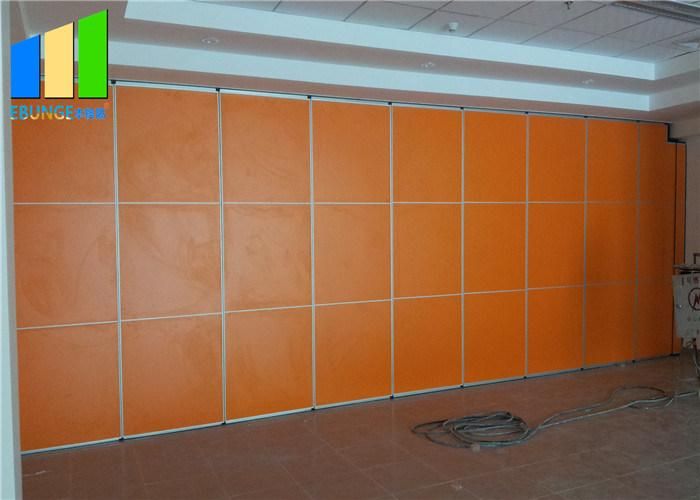

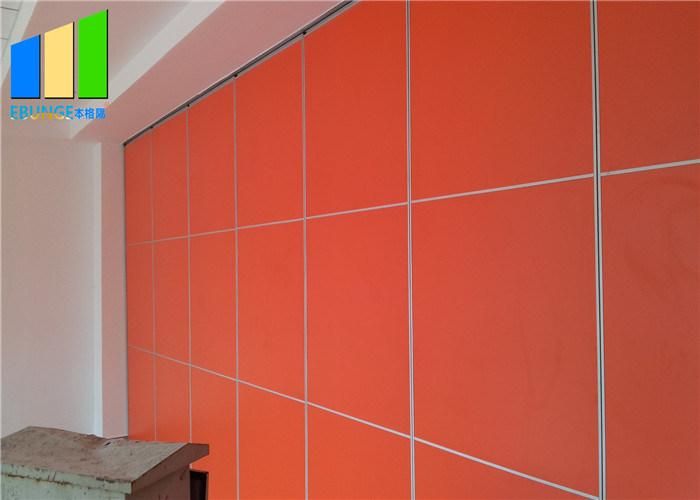

Movable Walls System
The movable walls are generally made up of several parts, such as track, horizontal wheel, sealing strip, an outer frame, datum plane material, sound insulation material, transmission rod, sealant strip and
so on.
1. Track: the material is made of 6063-T6 anodic alumina, which is used for lifting and hanging screens.
2, Double level hoist: roller material for poly-formaldehyde, wire rod material 45 tempered steel, bearing hanging screen, in the horizontal plane can do any angle rotation, can pass the pulley through the road
L, T, X intersection.
3, Hanging wheel seat: the material is A3 steel, connecting double horizontal lifting wheel and screen function.
4. Upper pressing strip: anodized alumina, sealing the gap between the screen and the ground and smallpox, and sound insulation as a fixed function.
5, Sealant strip: PVC PVC material, the surface color is black, start sealing, sealing light, contact wall buffering function.
6, Datum panel material: medium-density fiberboard, all conform to GB/T11718-1999.
7, Soundproof cotton: the adoption of PAR sound-absorbing glass fiber, fire resistance, thermal resistance, and noise reduction coefficient.
8. Frame seals: anodized alumina, vertical locking, sealing the narrow gaps from the screen border.
9, Telescopic mechanism: the material is standard 45 steel and spring steel, pressure spring operation, can automatically adjust the gap between the screen and the ground.
10, Stirring hand bar: the material is standard 45 steel, used for operation up and down, left and right telescopic mechanism.
11, Cover: the material is standard 45 steel, the surface is black chrome plated, built-in spring, protect the rod device.
Panel Height Maximum10000mm
Panel Width Minimum 600mm, Maximum 1200mm
Thickness of panels 65mm/85mm/100mm/125mm
Weight average 32.00Kg/m2 for whole panels
Rail loading Maximum 450KG/m
Acoustic Rating 25-53db
Finished: anodized or electrophoresis or powder coating to all exposed aluminum components available in a wide range of standard colors as required
Hardware and accessory: high-quality stainless steel handle, glass clips, aluminum track, and hinge. For more details please contact our salespersons.
Heat insulation and energy saving: excellent insulation performance. According to different occupancy rate, large space can be divided into small space and transparent, so as to reduce air conditioning power consumption.
Efficient fire retardant: the use of efficient fire-resistant materials, fire performance is good;
Beautiful and generous: arbitrary decoration on the surface, which can be decorated with indoor decoration effect.
Package And Delivery
About Us
Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is an ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to the USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, the Philippines, and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver, and have the after-sales service for clients. If the client needs installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will reply in 12 hours if the clients have any questions.
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer, our factory covers an area of about 12,000 square meters and the building area is more than 9,600 square meters.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by square meters, prices vary widely according to the thickness of walls and surface finish requirements. Therefore, for an accurate quotation, we need detailed dimensions such as height, width, and finish requirements. If possible, we also need your layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound-absorbing panels to achieve different acoustic ratings.
The partition panels come in different thickness, and different acoustic rating from 36db to 50 DB depending upon the project requirement. We can provide panels with raw MDF or any type of finish such as laminate, veneers, whiteboards, fabric, pin-boards, painted surfaces, etc to compliment your bilding environment and decor.
4.Q: How to install mobile partitions?
A: We provide installation guide services or send technicians as required. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.
5.Q: What are your payment terms?
A: 50% of total amount by T/T as a deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
6. Q: What is your warranty? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware, and accessories working properly under correct operation. In case of our quality problem, we will provide a replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
