• Model NO.：65 mm collapsing folding partition
• Customized：Customized
• Material：Wood
• Condition：New
• Product Name：Foldable Panel
• Application：Office Foldable Panel
• Feature：Sound Proofing
• Thickness：65mm
• Size：Partition Walls Customized
• Finish：Melamine Surface
• Frame Material：Aluminum Allo
• Height：2 - 4 Meters
• Sample：Optional
• Based Board：9 mm MDF Board
• Transport Package：Wooden Box
• Specification：85 mm thickness
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：94031000
• Production Capacity：50000 Square Meters Per Month
• Package size per unit product：250.00cm * 130.00cm * 8.00cm
• Gross weight per unit product：30.000kg

Series

BG65

BG85

BG100

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

65mm

80mm / 85mm

100mm

Panel height

Up to 4000mm

Up to 6000mm

Up to 18000mm

Max height

4000mm

6000mm

18000mm

Panel width

600-1230mm

600-1230mm

600-1230mm

Frame construction

Aluminum frame

Aluminum frame

Aluminum frame

Face material

9mm

9mm / 12mm

12mm

Fire safety

Optional Class I or O

Optional Class I or O

Optional Class I or O

Vertical profiles

Aluminum anodised with sealing profiles

Aluminum anodised with sealing profiles

Aluminum anodised with sealing profiles

Retractable seals

Aluminum black with
double rubber seals

Aluminum black with double rubber seals

Aluminum black with double rubber seals

Operation of seals

Manual, with supplied
operating handle

Manual, with supplied operating handle

Manual, with supplied operating handle

Locking

Optional lock to pass doors

Optional lock to pass doors

Optional lock to pass doors

Pass doors

Single open in panel or
double open in two panel

Single open in panel or double open in two panel

Single open in panel or double open in two panel

Sound insulation

20-32dB Rw

28-36dB Rw

32-50dB Rw

Weight

Approx 22-35kg/sq M

Approx 25-40kg/sq M

Approx30-48kg/sq M

Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc.  (Customized)

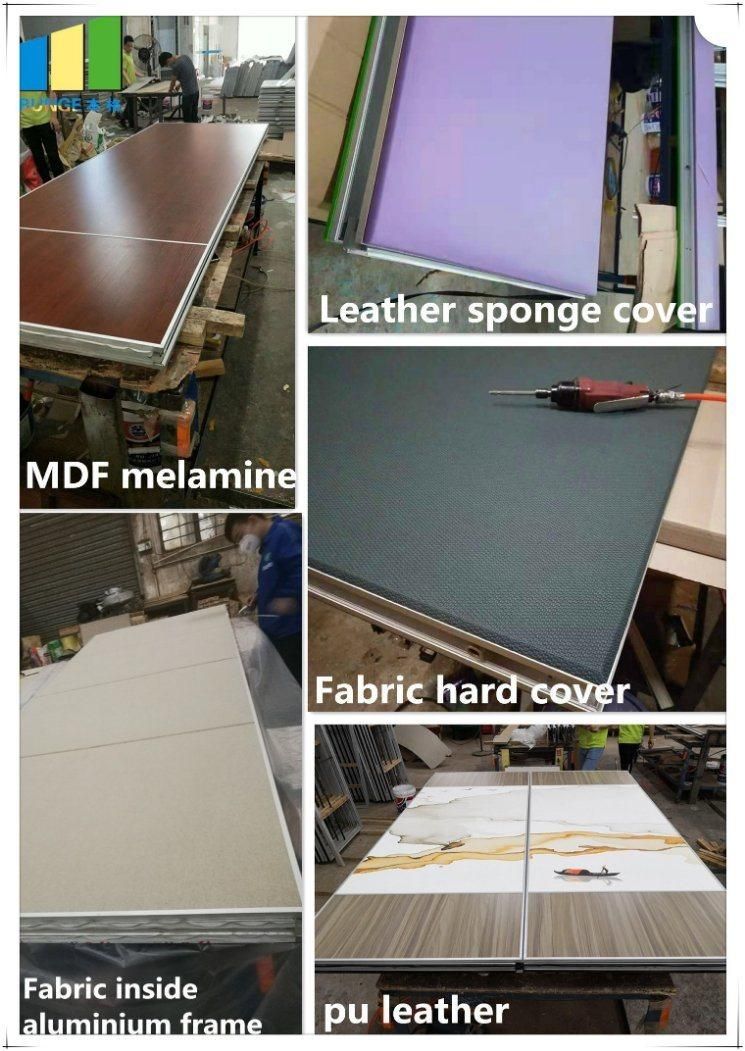

Finished And Surface Material







Package And Delivery




Ebunge Factory

Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.

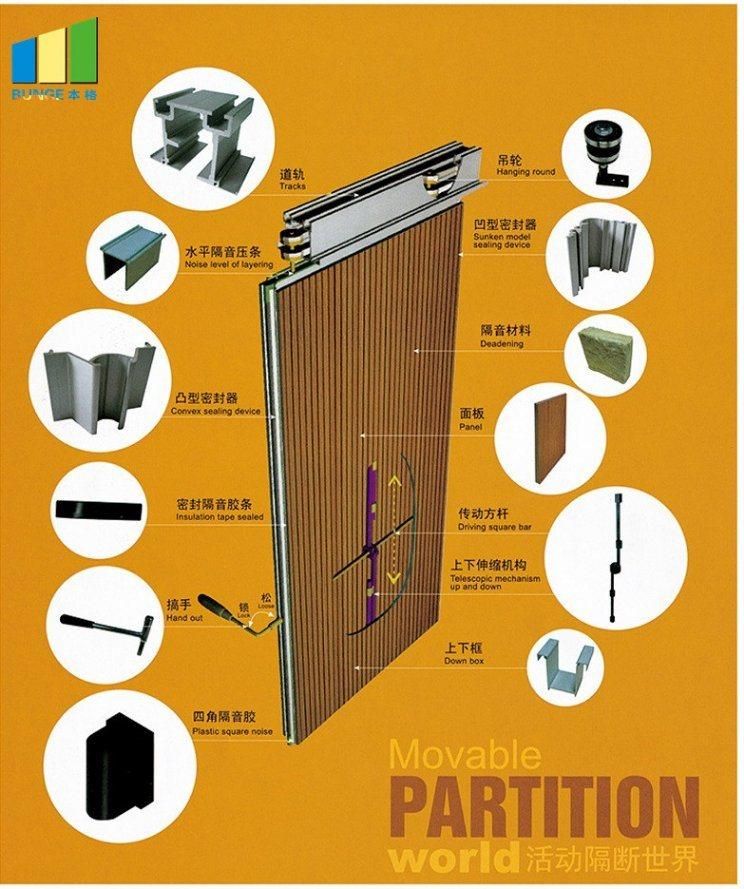

About the movable walls system we produce, it is a hanging system, which only have the ceiling tracks, but have no floor tracks, so it will not damage the floor or carpet at project site. The biggest features is that they can be divided a big space into 2 or more small rooms. When we do not use them, we can park them to the parking zone quickly. As for the operation, we usually use a handle to move and lock the panels, it is so easy that 1 person can finish the whole operation.

As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will reply in 12 hours if the clients have any questions.



FAQ

1. What the Movable Partition Wall use for?
They are the creative way to add flexibility and functionality to your space.extensively applied to star hotels, meeting rooms, ballrooms, clubs, banquet hall, convention centers, multi-function halls, trainning rooms and other facilities.

2. Have your partition wall products come in standard sizes?

No, actually all of our movable partition wall sizes are supported customized. The panels move on the ceiling track with no floor track.

3. How long does it take to install a partition system?

We will provide a detailed schedule on receipt of the order and keep everything updated regularly on progress. The time depends very much on the site and anything which we try to meet wherever possible.

4. Can you give us an initial indication of the cost of a particular system?

Yes.we can. We would need more information and possibly a site visit and survey before confirming and exact price.

5. Do I need to have an architect or building contractor?

Usually we only offer the site supervision service.if you are already using another contractor for other work then we can work with them to ensure a smooth process.

6. Do I need to provide technical information or drawings?

Yes, we need. If you already have technical information or drawing then we can use them to build and install the selected
products.

7. Are your products guaranteed?

Yes, all of our products carry a full 3 Year guaranteed,covering all parts and defects.

We can also provide an extended warranty if require and the products are expected to last a lifetime.
