• Model NO.：85 mm partition wall
• Color：Customized
• Customized：Customized
• Material：Wooden
• Condition：New
• Thickness：85 mm
• Product Name：Movable Partition Wall
• Panel Height：Less Than 6 M
• Panel Width：500-1230 mm
• Surface：Melamine,Fabric,Leather
• Application：Hotel Banquet Hall; Office; School
• Transport Package：Carton Package, MDF Batten on Four Section Sides
• Specification：85 mm
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：940310
• Production Capacity：5000sq,Month
• Package size per unit product：300.00cm * 100.00cm * 7.00cm
• Gross weight per unit product：25.000kg

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.  (Customized)

Features & Benefits:
1.Movable, interlocking panels suspended from an overhead track system
2.Sound rated panels for effective noise control
3.Available in paired (folding) and individual (omni-directional) configurations
4.Can include access doors for easy entry and exit
5.Blend with a room's aesthetics, similar to a permanent wall when extended.
6.Available in a wide range of colours and finishes, including: MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall paper, Wood mouldings, etc.

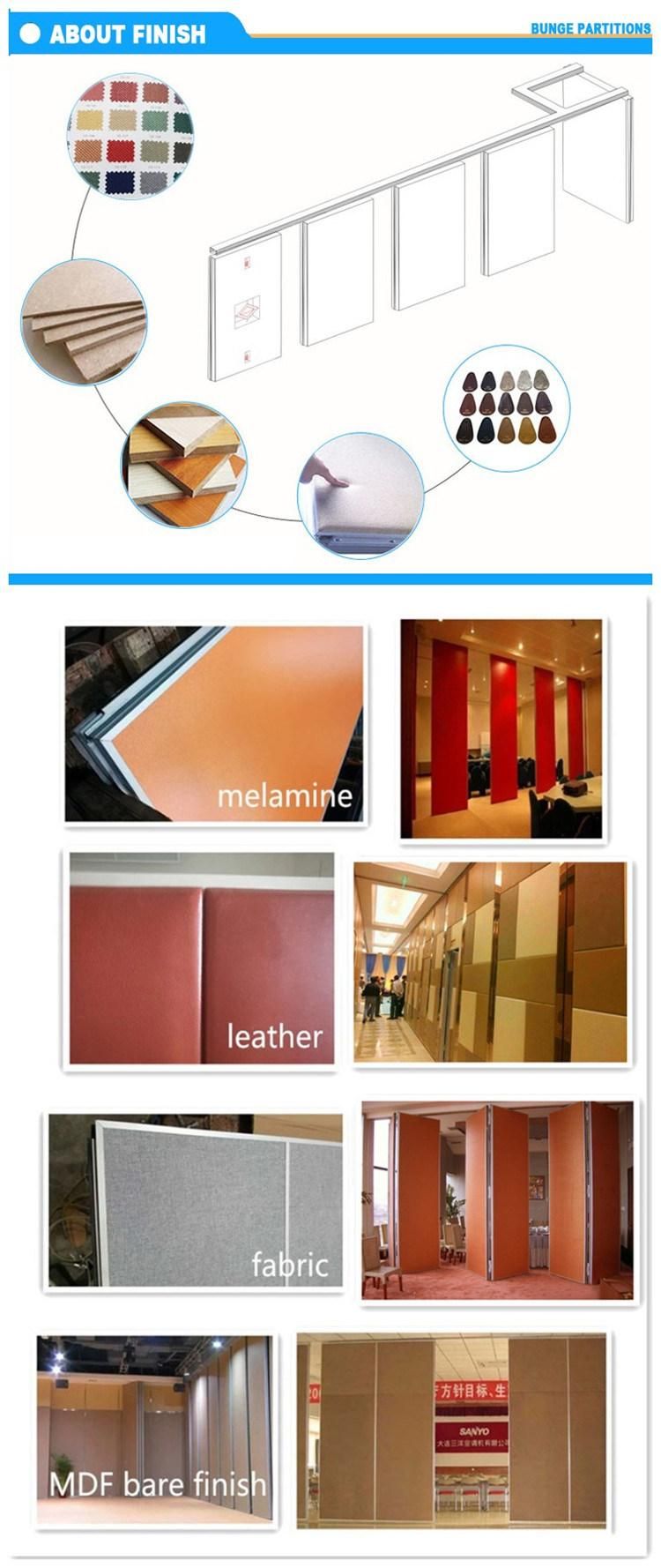

Surface

Different surface use in different areas.Our main surface is mdf melamine, it can be more easy to clean.
Also fabric and leather surface is very popular in conference room or banquet hall.
And like dancing room or classroom,client prefer mirror surface.
Also we can design surface pu leather with printing photos.
If client prefer to paint color on panels, we suggest Mdf bare finish.If prefer to glue wallpaper, plywood surface is a good choice.

Accessories
We can also provide sliding aluminium profile samples for client.
Such as sliding aluminium track,roller,connector,aluminium frame,top and bottom seal rubber,retractable mechanism and etc.

Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the retractable partitions panels with wheels.
Wheels/Rollers:  It is the carrier for the retractable partitions,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the retractable partitions.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

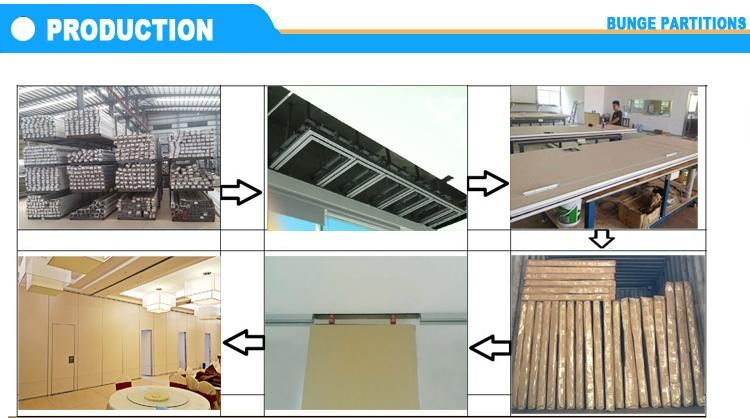

Production

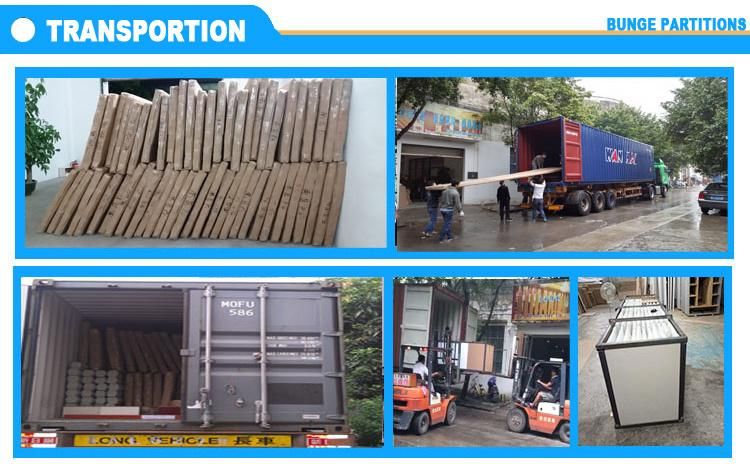

Packaging & Shipping

We have clients from all over the world,they are satisfied with our soundproof movable partition walls.

When they came to our factory, they all surprised at our environment and our technology.

There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.

Sliding partition wall when we finished production, we will use carton packing and mdf board to pack movable panels.
And we will also make one or more packing boxes for clients.It can reduce damagement during transportation.
We usually transport movable panels by sea, such as CIF price.
Some aluminium profile,sliding track,glass clips and other accessories we can transport by courier, like DHL or Fedex.

Free Sample in 10 Days   Inquiry now and you will have your sample in 10 day if you pay the express.

3-year Warranty                  The acoustic room divider made of  6063-T5 alumina, anti-aging, no fading and abrasion in 10 years

OEM Service     Your logo can be printed on the packaging carton

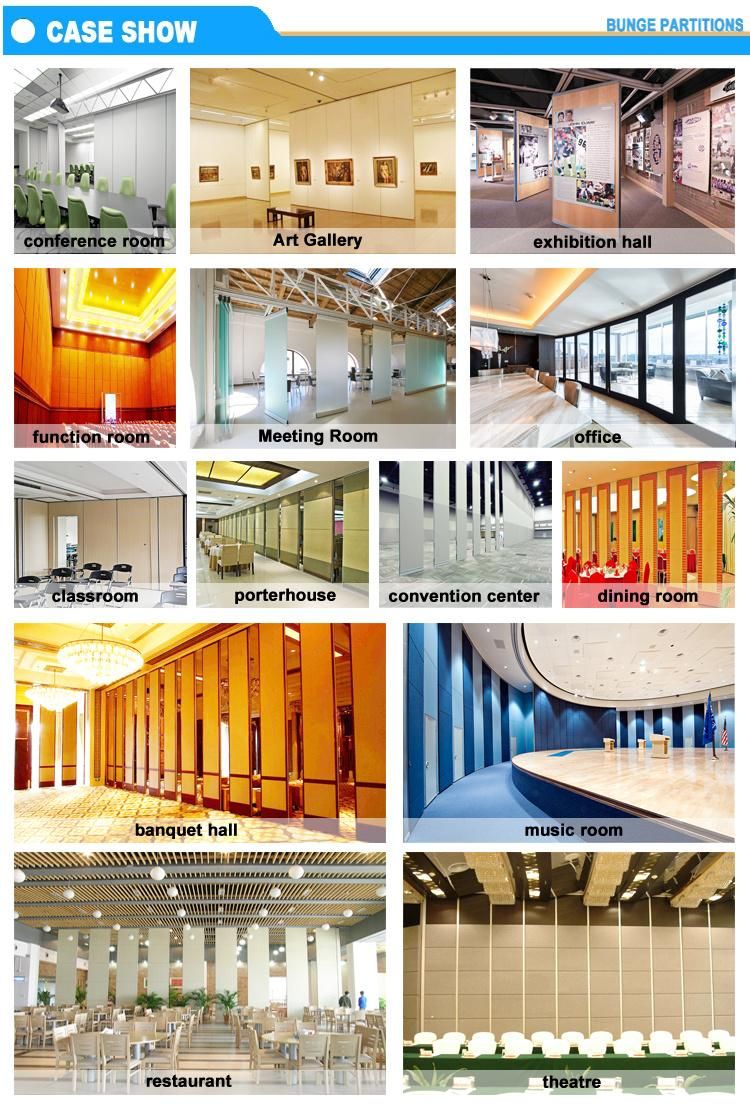

Case show

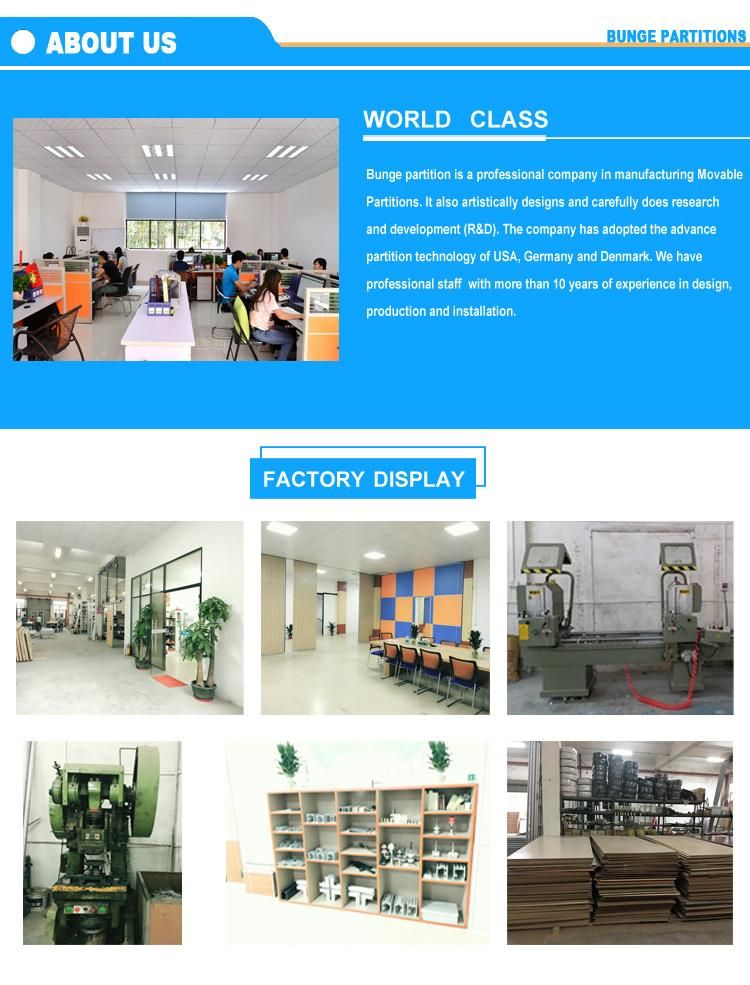

About us
Guangdong Bunge Building Matarial Industrial Co.,Ltd is professional company in manufacturing movable partitions.It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staffs with more than 10 years of experience in design,production and installation.
Our product(movable partition)are widely used in the hotel,banquet hall,meeting room,exhibition hall,conference room,International convention center,KTV,upscale restaurants,office building,school,hospital and others.
Nowadays,the modern trend in building needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the movable partition.
Bunge movable partition products as follow:
1.Ordinary Series:65MM,85MM;
2.High Sound Proof Series:85MM,100MM;
3.Super High Series:Steel Track System
4.Glass Series:65MM & 85MM Aluminum Frame

Client visiting
We have clients from all over the world,they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.

Our service:

1.Profession--We have professional sales staff. Any questions will be replied within 24 hours.

2.Price--Because we are factory,so we can provide nice quality and lower price products.

3.Service--Easy and convenient to transport,we promise timely delivery date, and good after-sale service.

4.Team--We have our own engineering department, according to your request for your tailor-made for your product.

5.Installing--Our engineer can come to teach installing,and we will also supply installing drawings and video.

FAQ

1.Q: Are you a manufacturer or trading company?

A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.

2. Q: What is the price of the movable wall?

A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.

3. Q: Is the movable partition acoustic (soundproof)?

A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.

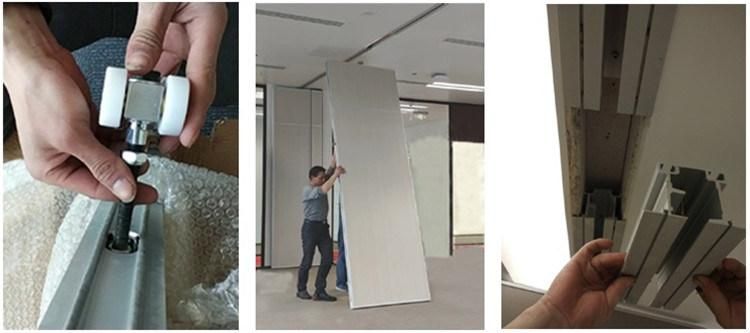

4.Q: How to install an active partition? Is it difficult to complete?

A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.

5.Q: Do you provide sample?

A: Yes, and the sample is free, you just pay the express delivery fee is ok.

6.Q: What is your payment terms?

A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.

7. Q : What is your warranty ? What do we do in case of problems?

A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
