• Model NO.：65 mm collapsing folding partition
• Material：Wood
• Condition：New
• Product Name：Folding Partition
• Application：Foldable Partition Wall
• Feature：Sound Proofing
• Thickness：85 mm(3 1,4 Inch)
• Size：Partition Walls Customized
• Payment：T,T
• Finish：Melamine Surface
• Frame Material：Aluminum Alloy
• Height：Less for 5m
• Sample：Optional
• Transport Package：Wooden Box
• Specification：85 mm thickness
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：94031000
• Production Capacity：50000 Square Meters Per Month

SeriesBG65BG85BG100Panel suspensionTop hung onlyTop hung onlyTop hung onlyTrack systemSingle or twin pointSingle or twin pointSingle or twin pointPanel thickness65mm80mm / 85mm100mmPanel heightUp to 4000mmUp to 6000mmUp to 18000mmMax height4000mm6000mm18000mmPanel width600-1230mm600-1230mm600-1230mmFrame constructionAluminum frameAluminum frameAluminum frameFace material9mm9mm / 12mm12mmFire safetyOptional Class I or OOptional Class I or OOptional Class I or OVertical profilesAluminum anodised with sealing profilesAluminum anodised with sealing profilesAluminum anodised with sealing profilesRetractable sealsAluminum black with
double rubber sealsAluminum black with double rubber sealsAluminum black with double rubber sealsOperation of sealsManual, with supplied
operating handleManual, with supplied operating handleManual, with supplied operating handleLockingOptional lock to pass doorsOptional lock to pass doorsOptional lock to pass doorsPass doorsSingle open in panel or double open in two panelSingle open in panel or double open in two panelSingle open in panel or double open in two panelSound insulation20-32dB Rw28-36dB Rw32-50dB RwWeightApprox 22-35kg/sq MApprox 25-40kg/sq MApprox30-48kg/sq MFinish MaterialPlywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting,etc. (Customized)


Finished And Accessories

Different surface use in different areas.Our main surface is MDF melamine, it can be easier to clean.Also fabric and leather surface is very popular in the conference room or banquet hall.And like dancing rooms or classrooms,client prefer mirror surface.Also we can design surface pu leather with printing photos.If client prefer to paint color on panels, we suggest Mdf bare finish.If prefer to glue wallpaper, plywood surface is a good choice .

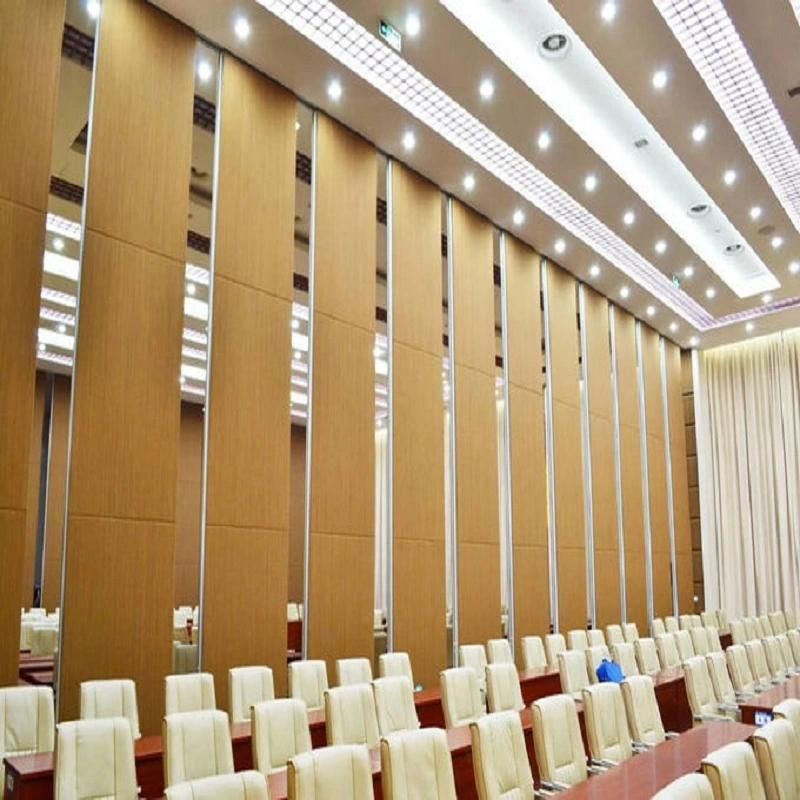

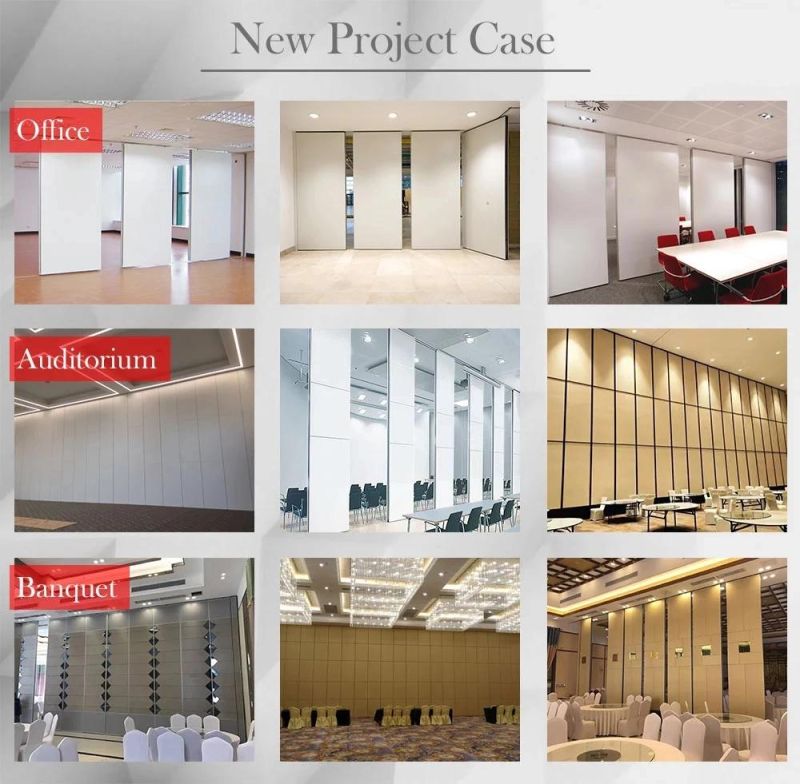

Project Feedback

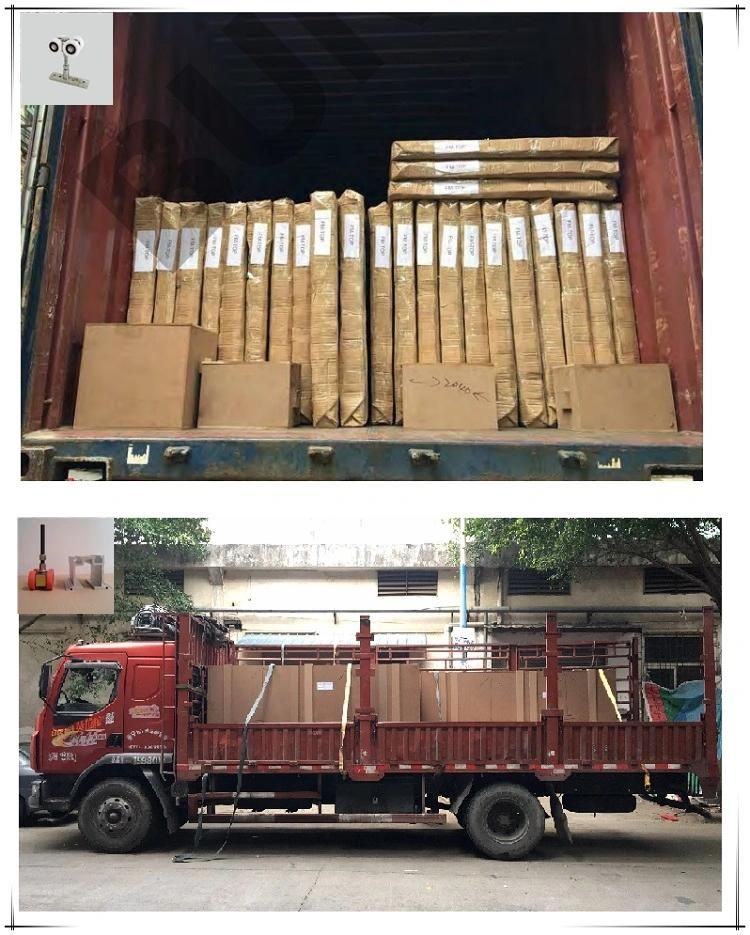

Package And Delivery

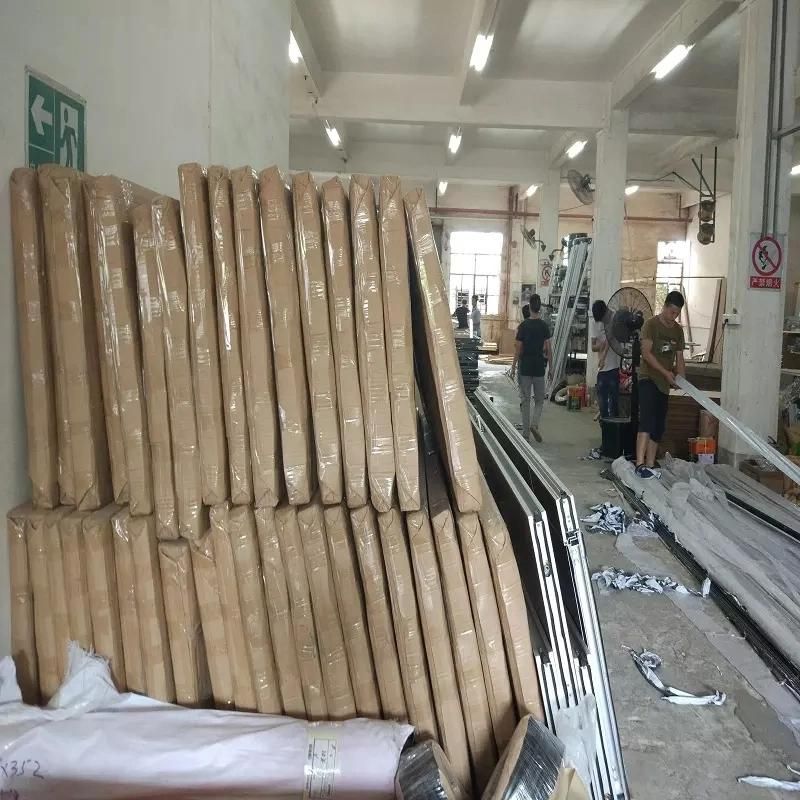

BUNGE Movable Partition Wall standard packing used carton paper for Full container loading, if only LC Loading, will use wooden box for the panels packing.
Packing details is Carton package, MDF batten on four section sides,foam board on both front faces.For special surface, like glass partition wall we can get wooden boxes packing for you.
Sea transport is a common mode of transportation.In an emergency, can be air freight.

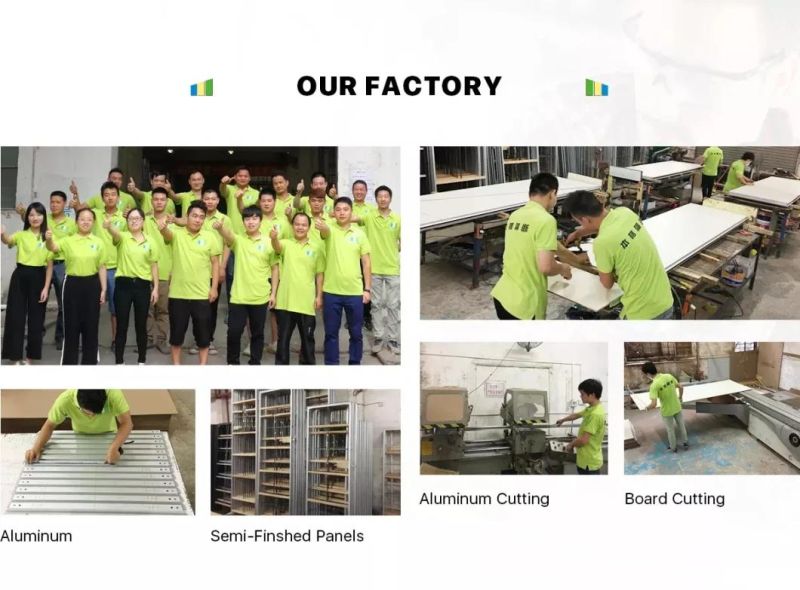

BUNGE Factory


Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.

About the movable walls system we produce, it is a hanging system, which only have the ceiling tracks, but have no floor tracks, so it will not damage the floor or carpet at project site. The biggest features is that they can be divided a big space into 2 or more small rooms. When we do not use them, we can park them to the parking zone quickly. As for the operation, we usually use a handle to move and lock the panels, it is so easy that 1 person can finish the whole operation.

As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will reply in 12 hours if the clients have any questions.
