• Model NO.：BG movable walls wheels
• Material：Aluminum Alloy
• Condition：New
• Product Name：Movable Partition Walls Tracks
• Finishing：Anodized Powder Coating
• Feature：Strong Wearability
• Operation：Top Hung Without The Floor Track
• Wheel：Single or Double
• Color Option：Silver, Champagne, Gray, Violet
• Application：Movable Partition Walls Panels
• Tracks Material：Aluminum Alloy
• Transport Package：Paper Carton
• Specification：65 type movable walls tracks
• Trademark：EBUNGE
• Origin：Guangzhou, China
• HS Code：83024200
• Production Capacity：50000 Meters Per Month

Standard Packing

Inside:packed with plastic film to protect each piece

Outside:Carton package

Customized request available

Production time

Mass Production:3-5 days after sample confirmed & down payment

Shipping Port

Guangzhou

Payment Terms

T/T ,Western Union

Settlement Terms

Charge by final actual weight or drawing theoretical weight

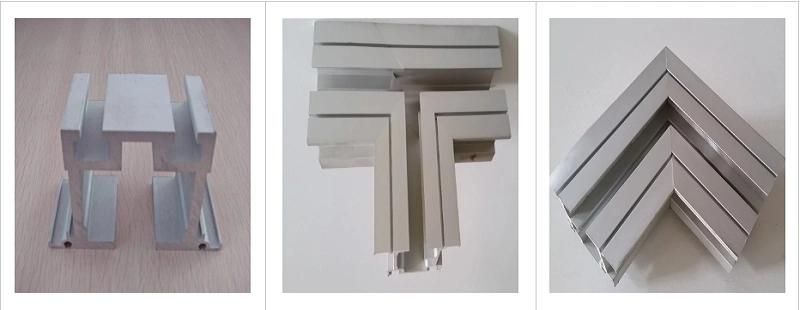

1) 6063-T5 national standard aluminium profile .

2) 95% pure

3)the aluminium is thermal-barrier strip.

4)Lengths: 3-6meters ,also as customer require

5)Recycle material, it in favor of protect environment.

6) Flexible size and shape.

7)Top hanging system without the need for a floor track.

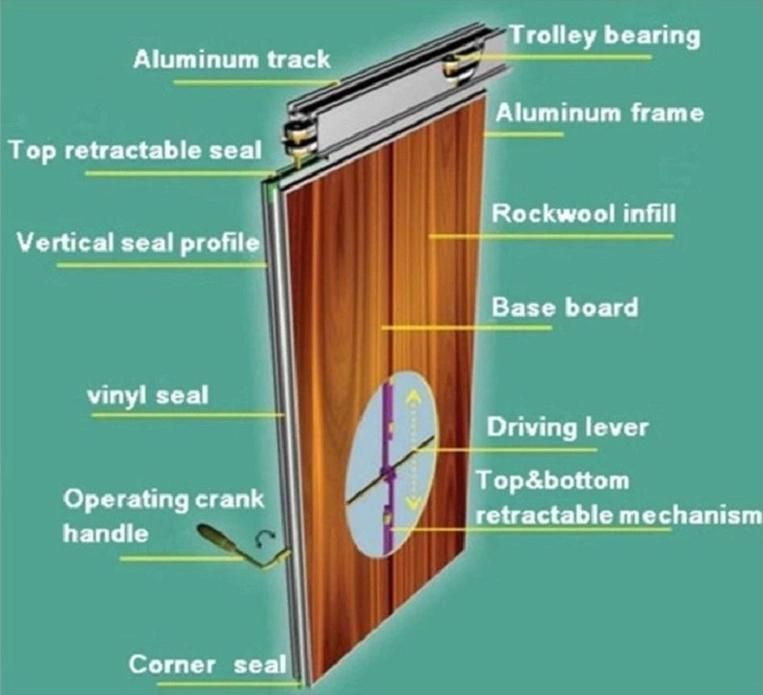

Accessories Specification

Operation:Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

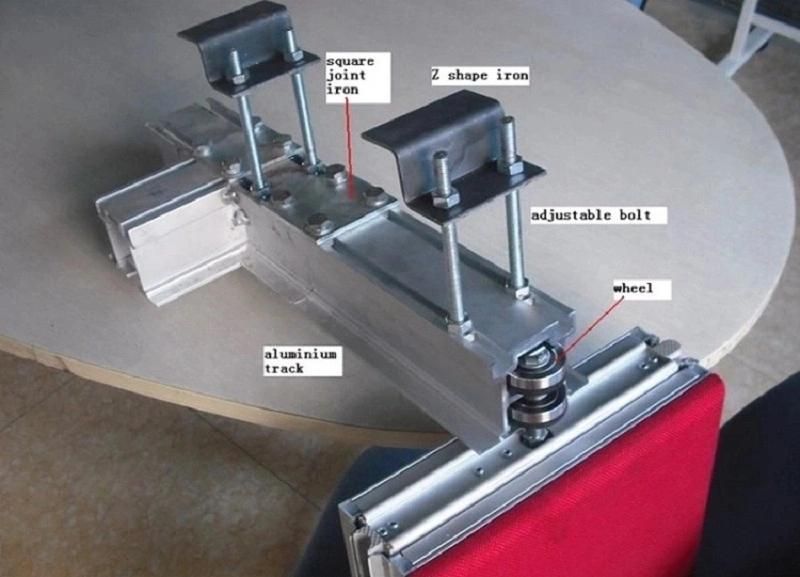

Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.

Aluminium trim: The panel trims will be standard series with exposed Aluminium trims of 10mm thickness finished in 6063 - T5 Anodized Aluminium shall be used.


Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.

Panel Surface Finish:The panel surface will be as per the clients requirement finished either in Sliwal factory - China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.

Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.

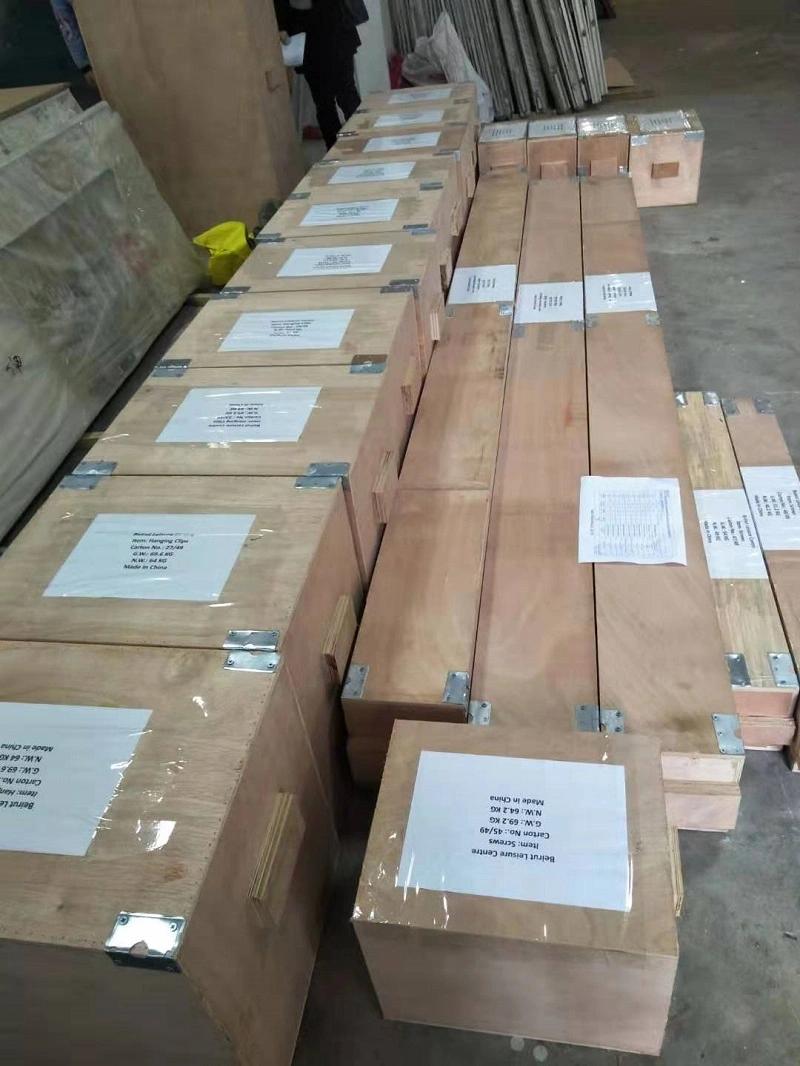

Packaging

Normally, we not only can supply the movable partition walls, we also supply the movable partition walls profiles if the client need, such as the partition walls tracks, trolley bearings and aluminum frames. Then we pack them by thick paper carton. Wooden box also available.


Production
