• Model NO.：Movable Partitions
• Surface：MDF Board, Fabric, Leather
• Type：Melamine MDF Panel, Fireproof PVC Board, Fabric(Le
• Application：Office, Hotel Banquet Hall, etc.
• Main Material：Aluminum Frame and Track
• Soundproof Mater：Rock Rool , Glass Wool
• Soundproof Stc：40dB-50dB
• Dimensions：W700-1200mm, H2000-5200mm, Thickness 80-110mm
• Stacking Way：Centre Partiting; Side Parking
• Open Way：Sliding Partition
• Transport Package：Carton Paper Packaging, MDF Batten Cover Corners
• Specification：Customized
• Trademark：MQ Acoustics
• Origin：China
• HS Code：76101000

Product Details

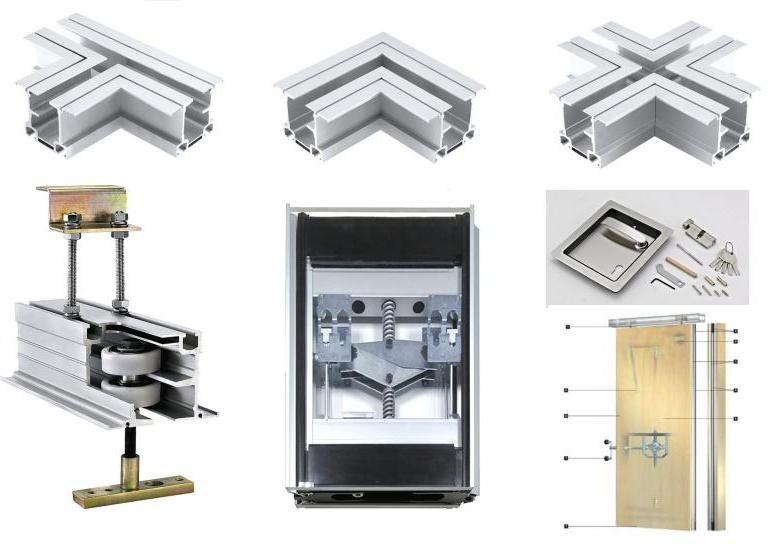

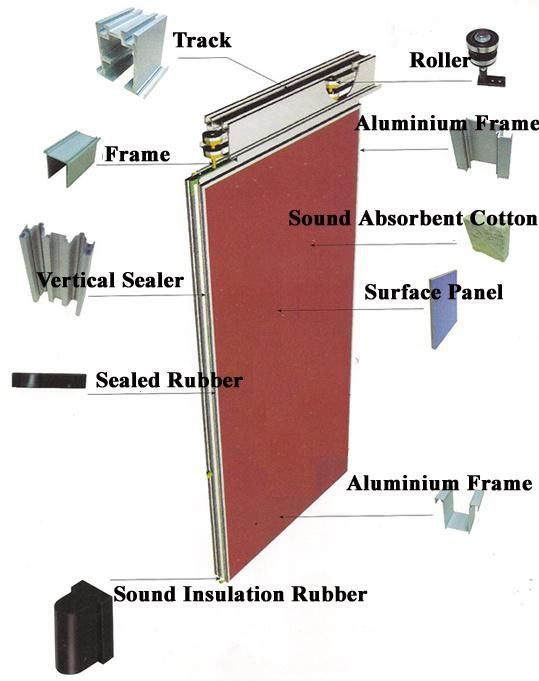

 Panel Suspension Top hunge system without the need for a floor track.Panel WidthEach panel 600mm-1200mm.TrackAluminum OR Steel TrackRoller on panelSingle or double  roller.                                                                                                             Panel Frames Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.Top&bottm sealsTop and bottom pressure retractable seals ensure effortless moved and locked.Module700mm - 1200mm maximum.Panel stackingNumerous panel stacking options for complete flexibility.Panel face MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.FinishesSatin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

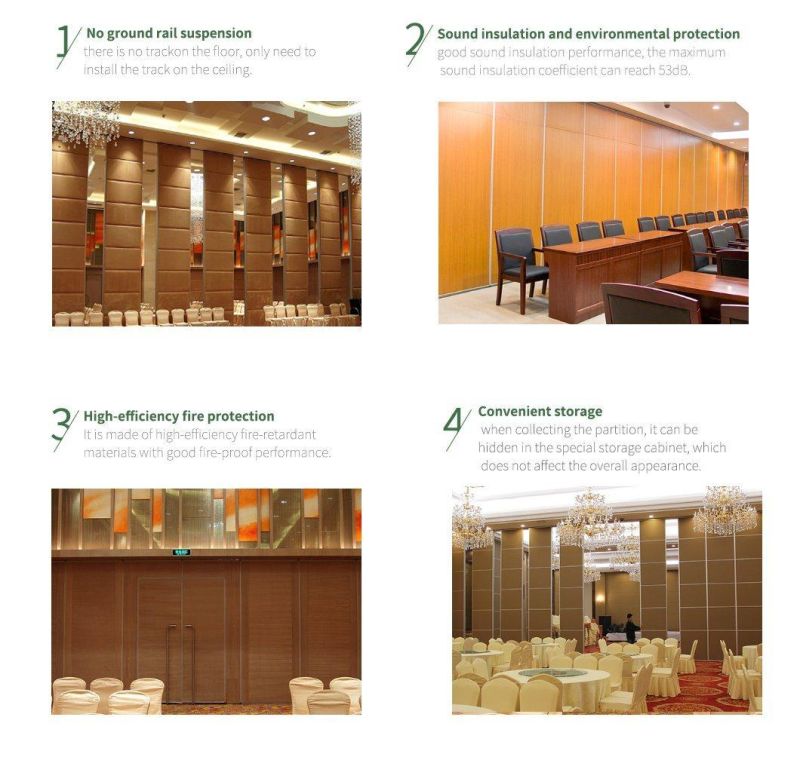

    Ultra-high Movable Partition is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.


Features

• FAQ

  1.What should I don on site?
  A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.

  2. How to install?
  We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.

  3. What is finishing face?
  The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
  We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.

  4. What is Procurement procedure?
  Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
  Secondly, we offer you the movable wall layout drawings for your confirmation
  Thirdly, we quote the movable wall in accordance with confirmed drawings.

  5.Is the movable partition acoustic (soundproof)?
  Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings.
  The partition panels comes in different thickness, and different acoustic rating from 36db to 50 db depending upon the project requirement. We can provide panels with raw MDF or any type of finish such as laminate, veneers, white boards, fabric, pin-boards, painted surfaces etc to compliment your bilding environment and decor.

  6. How do the goods packing?
  corrugating paper packaging, MDF batten cover all around corner.
  The movable wall panel and track, fittings will be packed separately.


  For more information, please feel free to contact us.
